February 3rd, 2014 08:00
Storage Reports / Physical/LUN Disks IO by this VM
Hello W4N Users,
I don't get to see any storage reports for individual VMs(the disk IOPS and throughput metrics for VMs) in watch4net v6.3
Does this version have this capability to report VM level metrics, is any setting need to be enabled?
Thanks
No Events found!
seamuscoffey
472 Posts
0
February 3rd, 2014 09:00
Hi,
Please ensure that the Statistics Level in vSphere is at least Level 2 in order to collect disk metrics. Level 3 would add device level network statistics.
Full details of the statistics levels can be found in the following document from VMware (see page 13).
http://pubs.vmware.com/vsphere-50/topic/com.vmware.ICbase/PDF/vsphere-esxi-vcenter-server-50-monitoring-performance-guid…
Regards,
Seamus Coffey
EMC Customer Services
sracharla
49 Posts
0
February 3rd, 2014 09:00

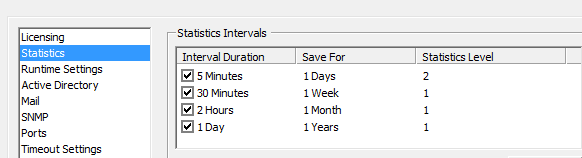

Thanks Seamus, I have it as set as level 2 for 5 minutes Interval Duration. Probably it has to be set for the other intervals also?
