DELL 7710 where to find XMP BIOS
Hi Experts!
I have a workstation Dell7710 Xeon , I am wondering where i can find xmp mode . I tried F2 to enter bios but not know where this option available?
No Events found!
Chino de Oro
9 Legend
•
8.1K Posts
0
February 6th, 2022 23:00
It sounds like you are trying to squeeze out some extra performance from your system. Unfortunately, both of turbo boost (2.0) and turbo boost max (3.0) are not overclockable. On the bright side, you have a high-end Skylake processor which is still good to handle today applications.
On the concern regarding memory, whenever you mix your ram, the system default to the lowest clock. Consider yourself lucky as many others having problem when mixing brands and clocks.
Chino de Oro
9 Legend
•
8.1K Posts
0
February 6th, 2022 19:00
Hello @Farrukh hameed , not an expert, just an ordinary computer user trying to help your query. From what I've seen, only selected Alienware and XPS have XMP profile settings. Precision line uses both ECC and non-ECC RAM. They are for business and professional, therefore, it focused on the memory integrity, error correction, data corrupt prevention, rather than speed.
The XMP mode is not available in your system BIOS.
Farrukh hameed
1 Rookie
•
8 Posts
0
February 6th, 2022 21:00
HI Sir Chino de Oro,

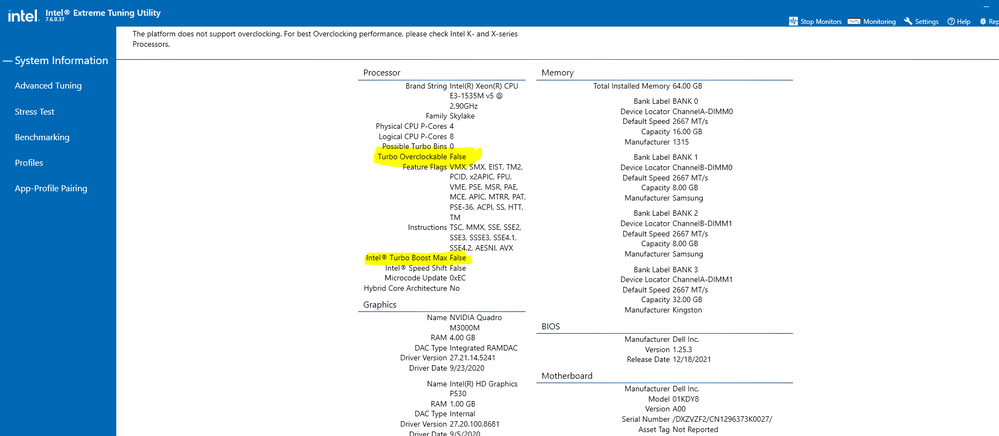

Thanks for your reply. Below is my computer information the highlight with yellow color Turbo overclockable and interl turbo boost max can we make as TRUE.
I have installed ram having clock 32 gb kingston speed 3200mhz (Bank label Bank3 in the screenshot) the other ram having clock speed 2666mhz ,but the system showing only 2666mhz . In total memory the 32gb of ram 3200mhz is added.
Is it possible
Farrukh hameed
1 Rookie
•
8 Posts
0
February 7th, 2022 00:00
Thank you sir for your clarification, I understood very well.
Chino de Oro
9 Legend
•
8.1K Posts
0
February 7th, 2022 01:00
You are welcome. There is a suggestion upgrade that will boost the performance significantly. The graphics card can be upgrade to a Quadro M5000M. It will be a straight forward swap. If you are savvy enough, a Pascal P4000 will be an optimal upgrade, with a mod driver. Just a thought.
