September 17th, 2025 00:51
Inspiron 5680, upgrading my 460 watt psu
My current rig has an insufficient battery (460 watts) even for a Dell Inspiron 5680. I was wondering if there were any larger power supply units available ( at least 700 watts) which are compatible with the Inspiron 5680?
No Events found!
redxps630
9 Legend
•
14.6K Posts
1
September 17th, 2025 13:58
Any good brand name standard 24/4 ATX psu would do. Dell has 850w oem psu for XPS/Aurora that can work in 5680 too
Ross Damon
1 Rookie
•
8 Posts
0
September 17th, 2025 16:11
Any place I could get this on the cheap? Is the evga 700 gd a good fit, with the switch and outlet being on the left side?
redxps630
9 Legend
•
14.6K Posts
0
September 17th, 2025 17:28
https://www.dell.com/community/en/conversations/xps-desktops/evga-psu-ranking/65975be2a67e331efaa37b1a?keyword=psu%20ranking
redxps630
9 Legend
•
14.6K Posts
0
September 18th, 2025 01:35
700 GD ranks high on EVGA psu list
Ross Damon
1 Rookie
•
8 Posts
0
September 18th, 2025 02:06
Is it possible to install upside down? So the outlet can be plugged in?
(edited)
redxps630
9 Legend
•
14.6K Posts
0
September 18th, 2025 02:16
the mounting holes of standard ATX psu (not in a rectangle) only allow it being right side up to be installed. but if you just let it sit loose at bottom of case without being mounted I suppose you can try. You may need to leave power cord plugged in psu all the time that way b/c the psu would be loose.
(edited)
redxps630
9 Legend
•
14.6K Posts
0
September 18th, 2025 02:17
Is the EVGA outlet blocked by Dell case plastic?
Ross Damon
1 Rookie
•
8 Posts
0
September 18th, 2025 03:45
@redxps630 Most power supplies do
Not sure if the EVGA 700 GD is different
(edited)
redxps630
9 Legend
•
14.6K Posts
0
September 18th, 2025 15:13
Dell has a poor case design to make back panel plastic unfriendly for psu upgrade by restricting plug positioning. User had to cut panel to access plug of Corsair psu upgrade .
evga 700gd on/off switch may be blocked by Dell panel. It is designed to be mountable either side up apparently.
Dell 460w
(edited)
Ross Damon
1 Rookie
•
8 Posts
0
September 28th, 2025 00:37
Hey sorry just got the new power supply by mail and it had not power cords to connect to the motherboard. It is the 1000 w power supply D1000EGM-00 btw.
bradthetechnut
7 Technologist
•
9.1K Posts
0
September 28th, 2025 02:53
Sounds like you got a modular PSU. I thought they all came with the connecting cables. Did you buy it new and what brand did you get?
Ross Damon
1 Rookie
•
8 Posts
0
September 28th, 2025 16:12
I got a Dell brand psu, a 1000 w unit
https://www.cpumedics.com/dell-hu1000egm-00-1000w-power-supply-for-dell-alienware-aurora-r2-r5-r6-r7-r8-r9-r10-r11-r12-a51-xps-8920-8930-t3630-t3640-t3650-inspiron-5675-5680/?_vsrefdom=adwords&msclkid=d935a2c6184e135265baca1f4642bb8d&utm_source=bing&utm_medium=cpc&utm_campaign=Smart%20Shopping%20%7C%20All%20Products&utm_term=2329109225744007&utm_content=All%20Products
It didn't come with any cords so i think i was either not to clear on what i wanted or they shortchanged me.
bradthetechnut
7 Technologist
•
9.1K Posts
0
September 28th, 2025 23:11
Well, CPUMedics didn't indicate any cables come with the PSU, so you weren't shortchanged. Do you need help finding the right cables? @redxps630 would be one of the best ones to help you with that.
Ross Damon
1 Rookie
•
8 Posts
0
September 29th, 2025 01:52
Yes, that would be really helpful to know the exact cables for this type of psu.
redxps630
9 Legend
•
14.6K Posts
0
September 29th, 2025 18:12

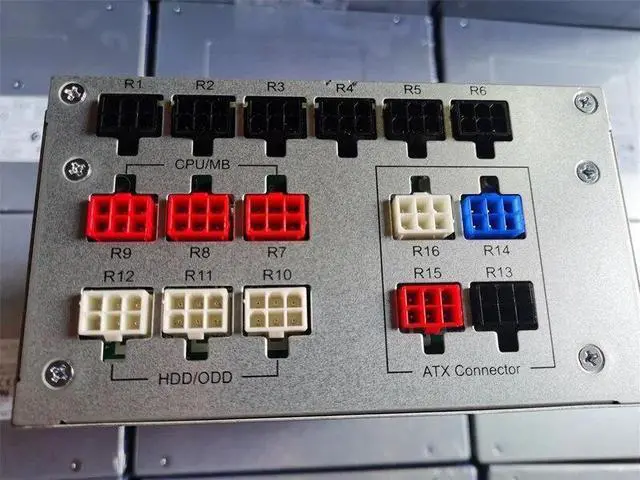

The Dell 850w and 1000w psu modular ATX psu uses a set of proprietary power cables which are color coded and labeled for factory worker to plug in easily on psu side, and they are all 6 pin connectors for R# sockets. On motherboard side they are mostly standard connectors. The 24 pin socket is standard. The Dell psu proprietary cable set for the most part can be used on any standard motherboard including Inspiron
Dell cable set (incomplete) for psu side R# sockets:
(2) JX68G for R3 & R4 - 6+2 PCI-E Cable 14"
(2) G9Y40 for R5 & R6 - 6+2 PCI-E Cable 10"
(1) MD63V for R7 - 8-pin EPS
(1) GP6MV for R9 - 4-pin cpu 17"
(1) G2GX9 for R10 - Angled Dual SATA 16"
(1) 4NT8R for R12 - HDD (Dual SATA) + ODD (miniSATA) 7.5"
(1) 654MT for R13,14,15,16 - 24 pin ATX connectors 9"
https://www.dell.com/community/en/conversations/alienware-desktops/aurora-r10-1000w-psu-where-to-buy-the-extra-psu-pcie-cables/647f97dcf4ccf8a8deaf128a
(edited)
