Unsolved
3 Posts
0
1345
March 31st, 2022 00:00
Not able to discover second node during VxRail installation.
I am installing two node vxrail cluster. while running the configuration I am not able discover the second node.
Network Connectivity:
Node 1- Port 1 Connected to Cisco Cat 6500
Node 1 Port 2 Connected to Cisco 9400
Node 1 Port 3 Connected to Node 2 Port 3
Node 1 Port 4 Connected to Node 4 Port 4
Network Card 4x10 Gbps
Node 2- Port 1 Connected to Cisco Cat 6500
Node 2 Port 2 Connected to Cisco 9400
Node 2 Port 3 Connected to Node 1 Port 3
Node 2 Port 4 Connected to Node 1 Port 4
Network Card 4x10 Gbps
Multicast is not enabled, it would be great if someone can help me with the commands to enable it.
No Events found!
DELL-Josh Cr
Moderator
•
9.2K Posts
0
March 31st, 2022 10:00
Hi,
Is the MLD querier also disabled? https://dell.to/3LvAfmp
DELL-Naoyuki K
4 Operator
•
1.9K Posts
0
March 31st, 2022 12:00
If multcast is not enabled, you should follow the procedure with manual discovery.

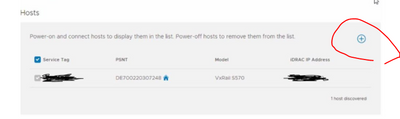

in this case, you have to manually add node by clicking + button.
Ashish_ind
3 Posts
0
April 2nd, 2022 04:00
Yes it is disabled.
By any chance do you have commands to enable multicast on the ports of Cisco Catlyst 6500.
Ashish_ind
3 Posts
0
April 2nd, 2022 04:00

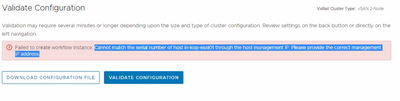

I am getting the error below, I think its picking up the service tag of the server instead of serial no.
DELL-Naoyuki K
4 Operator
•
1.9K Posts
0
April 3rd, 2022 18:00
unfortunately, i cannot view the images attached.
DELL-Josh Cr
Moderator
•
9.2K Posts
0
April 4th, 2022 09:00
This might help with multticast on that switch. https://dell.to/3uW6STp
