March 16th, 2017 07:00
How to configure UNITY for VIAS/AMP
Hi,
I try to find a step by step procedure in order integrate UNITY under VPLEX AMP/VIAS but found nothing.
I have done it several time for VNX with the help of White Paper but doesn't work for unity.
Any tips will be useful
Found the solution
Unity is the SMI Provider / Needs to set Port in 5989 instead of 5988 [default in the GUI] / Must activate SSL
I think that VPLEX documentation in not up to date regarding this point....
Message was edited by: Julien_LECORRE
No Events found!
ankur.patel
2 Intern
•
286 Posts
0
March 16th, 2017 08:00
I didn't look in any document, but its a little different for unity. The AMP service is built into Unity
Julien_LECORRE
92 Posts
0
March 16th, 2017 09:00
Thanks. Have found it by myself but your explanation is more clear
SteveK821
2 Intern
•
147 Posts
0
June 8th, 2017 00:00
@pochoetb: What version of VPLEX code are you running? Anything below 6.0 will not display info for Unity properly. I had the same problem myself.
SteveK821
2 Intern
•
147 Posts
0
December 5th, 2017 00:00
Have you tried to restart the management service on VPLEX?
(Log out of GUI first)
Open SSH session to Management server, log in as service, but don't start VPLEXCLI. Instead, run:
sudo /etc/init.d/VPlexManagementConsole restart
Then wait a couple of minutes. If you have a metro cluster, then do this on both Clusters.

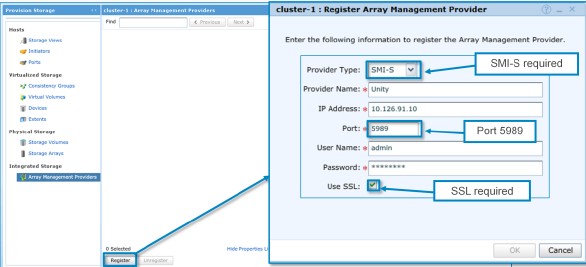

Try deleting the AMP and re-adding it. Use the settings in the screenshot above.
