January 23rd, 2023 04:00
Upgrading my dell vostro 5402 8 GB ram to 16 GB
Vostro 5402
I want to upgrade my Dell Vostro 5402 8GB ram to 16 GB. What should I look for another memory stick? Can I get other company than Dell (for example: Transcend, Kingston, etc.) ? How can I know which stick do I have without opening the laptop?
I was offered these [two sticks][1], I don't know which one to choose: https://imgur.com/a/lwaW4DD
This is my laptop specifications:
Memory: 8 GB
Processor: 11th Gen Intel(R) Core(TM) i5-1135G7 @ 2.40GHz[Cores 4] [Logical processors 8]
Operating System: Microsoft Windows 11 Pro

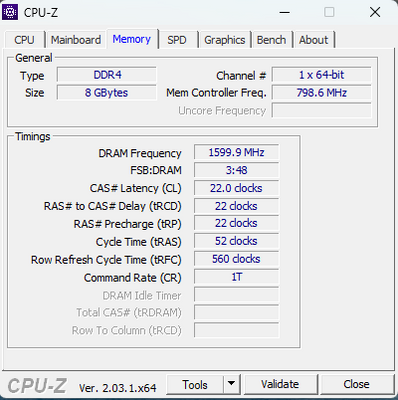

[CPU-Z memory tab][2]: https://imgur.com/a/QJOc7dt,
Northbridge Intel Tiger Lake rev. 01
Southbridge Intel Tiger Lake-U/Y PCH rev. 20
Bus Specification PCI-Express 4.0 (16.0 GT/s)
Graphic Interface PCI-Express
Memory Type DDR4
Memory Size 8 GBytes
Channels 1 x 64-bit
Memory Frequency 1596.5 MHz (3:48)
Memory Max Frequency 3200.0 MHz
CAS# latency (CL) 22.0
RAS# to CAS# delay (tRCD) 22
RAS# Precharge (tRP) 22
Cycle Time (tRAS) 52
Row Refresh Cycle Time (tRFC) 560
Command Rate (CR) 1T
Memory Controller Frequency 798.2 MHz
Host Bridge 0x9A14
[SPD Tab][2]: https://imgur.com/a/QJOc7dt
SMBus address 0x50
Memory type DDR4
Module format SO-DIMM
Module Manufacturer(ID) Micron Technology (2C00000000000000000000000000)
SDRAM Manufacturer (ID) Micron Technology (2C00000000000000000000000000)
Size 8192 MBytes
Max bandwidth DDR4-3200 (1600 MHz)
Part number 8ATF1G64HZ-3G2J1
Serial number 2AD70F48
Manufacturing date Week 41/Year 20
Nominal Voltage 1.20 Volts
EPP no
XMP no
AMP no
EXPO no
JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency
JEDEC #1 10.0-11-11-24-34 @ 733 MHz
JEDEC #2 11.0-11-11-26-37 @ 800 MHz
JEDEC #3 12.0-12-12-28-40 @ 866 MHz
JEDEC #4 13.0-13-13-30-43 @ 933 MHz
JEDEC #5 14.0-15-15-34-48 @ 1033 MHz
JEDEC #6 15.0-16-16-36-51 @ 1100 MHz
JEDEC #7 16.0-17-17-38-54 @ 1166 MHz
JEDEC #8 17.0-17-17-40-57 @ 1233 MHz
JEDEC #9 18.0-18-18-42-60 @ 1300 MHz
JEDEC #10 19.0-19-19-44-63 @ 1366 MHz
JEDEC #11 20.0-21-21-47-68 @ 1466 MHz
JEDEC #12 21.0-22-22-50-71 @ 1533 MHz
JEDEC #13 22.0-22-22-52-74 @ 1600 MHz
JEDEC #14 23.0-22-22-52-74 @ 1600 MHz
JEDEC #15 24.0-22-22-52-74 @ 1600 MHz
[1]: https://imgur.com/a/lwaW4DD
[2]: https://imgur.com/a/QJOc7dt
[3]: https://i.stack.imgur.com/RqbHo.png
[4]: https://i.stack.imgur.com/l2uiv.png
No Events found!
filbert
4 Operator
•
1.8K Posts
1
January 23rd, 2023 07:00
You have 3200 MHz, as I can see in the screens you posted and in Dell's memory specifications for your laptop.
You may add another DDR4-3200 stick. However, sometimes mismatched RAM brands/models may not play well together. If that happens, you can try another brand. If it still doesn't work, you may have to remove your RAM stick and buy a matched pair.
I don't know your current RAM brand, but it uses Micron chips (many brands use Micron chips). Crucial uses Micron chips (both brands are part of the same company), so you could try Crucial.
Follow the disassembly and reassembly steps in Dell's Service Manual. Here are the instructions for removing RAM.
Look on YouTube for videos showing disassembly of your model. But, be cautious with them, as some use steps or methods that are not appropriate. Use the videos to add to your understanding of what to do, but follow the steps in Dell's manual.
Whenever touching components or working inside a computer, wear a grounded wrist strap, also called anti-static wrist strap, ESD wrist strap, or ground bracelet. It's a cheap and sensible precaution. Rest the laptop on an anti-static mat or at least a reasonable alternative such as corrugated cardboard.
vishvajitd
2 Intern
•
278 Posts
0
January 23rd, 2023 04:00
The two memory sticks you've linked are both DDR4 SODIMM RAM, the type of RAM commonly used in laptops. They also have a capacity of 8GB and a speed of 2400 MHz.
It's important to match the new RAM's capacity and speed with your laptop's existing RAM. The existing RAM in your laptop is 8GB and 2400MHz, so you will need to purchase another 8GB and 2400MHz RAM.
As for the brand, it is generally recommended to use the same brand as the existing RAM in your laptop. However, you can use other reputable brands such as Transcend, Kingston, Corsair, Crucial, etc.
To know which stick you have without opening the laptop, you can check the information on the RAM by checking the system information; you can find it by going to the control panel> system and security > system > advanced system settings > performance settings > advanced > virtual memory. You can also check the information on the RAM from the BIOS setup or by using system information software.
DELL-Cares
Moderator
•
27.1K Posts
0
January 23rd, 2023 04:00
Hi.
We have replied to you via direct message.
ChosenE
1 Rookie
•
24 Posts
0
January 23rd, 2023 05:00
Crucial Memory scan: https://www.crucial.com/scanview/79B971B431D926C3
