Vostro 5090 Power Supply and Radeon RX 580
Purchased Vostro 5090 i5 model
looking to install RX 580 will it work with a current power supply D10 460 W EPA Bronze
do i need 650W power supply? which power supply compatible with this Desktop
i read listed specs graphics specifications - already have RX 580
No Events found!
redxps630
9 Legend
•
14.4K Posts
0
April 15th, 2020 20:00
It depends on your video application. you can use 460 W system power supply to run RX 580 for general video app. But if you are into serious gaming and need to push the card to its spec limit then I would suggest get a 550W or 600W psu. the 5090 is a mini tower so any standard ATX PSU would fit. I just recommended an EVGA 550W to another user who has an RX580. https://www.amazon.com/EVGA-Warranty-Power-Supply-100-N1-0550-L1/dp/B01LYGJL0E
redxps630
9 Legend
•
14.4K Posts
0
April 20th, 2020 15:00
You should order the 460W Dell psu. Glad they have it.
You have i5-9400. The gpu that best matches the i5 is GTX 1660 (1% bottleneck). The RTX 2060 is great too (9% bottleneck by cpu). RTX 2070 is too fast for i5.
RX 550 is too weak for the i5 (100% bottleneck). GTX 1660 recommended psu is 450W.
AraNYC0101
8 Posts
0
April 16th, 2020 05:00
thank you,
AraNYC0101
8 Posts
0
April 18th, 2020 16:00
what modular PSU do you suggest ?
@redxps630
thank you in advance
redxps630
9 Legend
•
14.4K Posts
0
April 18th, 2020 17:00
semi modular may be less expensive than fully modular
https://www.deskdecode.com/top-best-550w-psu-power-supply-for-pc-monthly-updated/
Cosair, EVGA, Seasonic, Antec, Rosewill, these are the top 5 name brands I would suggest.
AraNYC0101
8 Posts
0
April 20th, 2020 08:00
hello
thank you for reply after doing some more reading i am thinking about buying
https://www.amazon.com/EVGA-Warranty-Power-Supply-100-N1-0550-L1/dp/B01LYGJL0E
i just want to make sure will work with my desktop 5090, from what i read on forum dell uses proprietary PSU and installing it might be an issue
once again thank you for your advice
@redxps630
AraNYC0101
8 Posts
0
April 20th, 2020 11:00
its seem too much trouble! no i way i can do that i was looking for simple solution,
i am still new at upgrading Desktops
please take closer look at the pin maybe there is something can be done ?
redxps630
9 Legend
•
14.4K Posts
0
April 20th, 2020 11:00

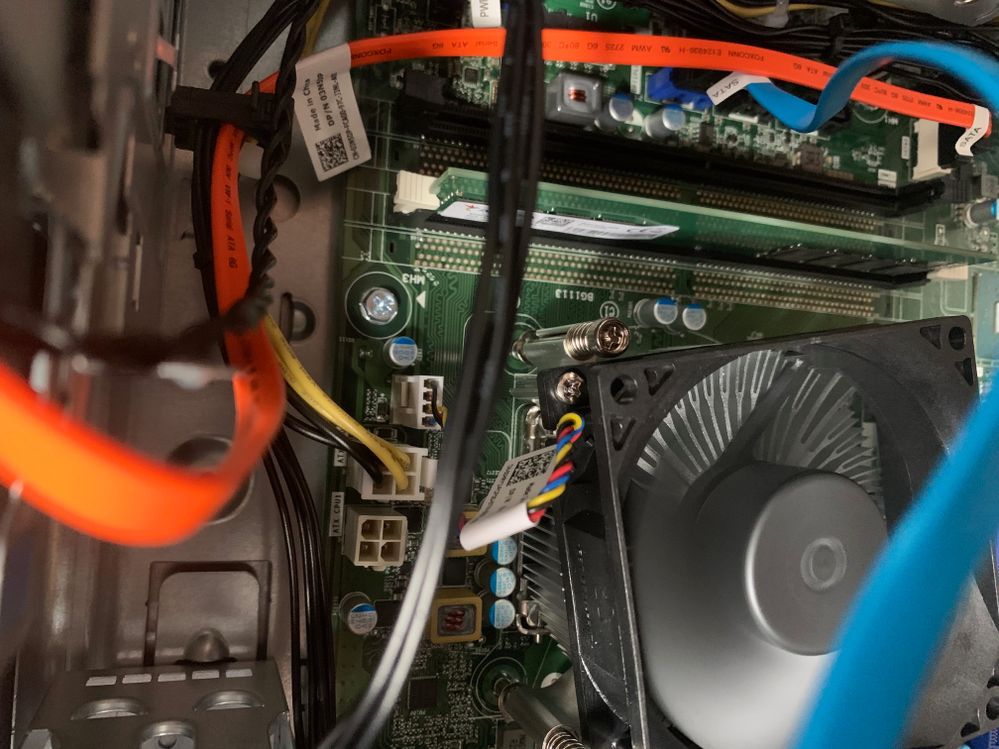

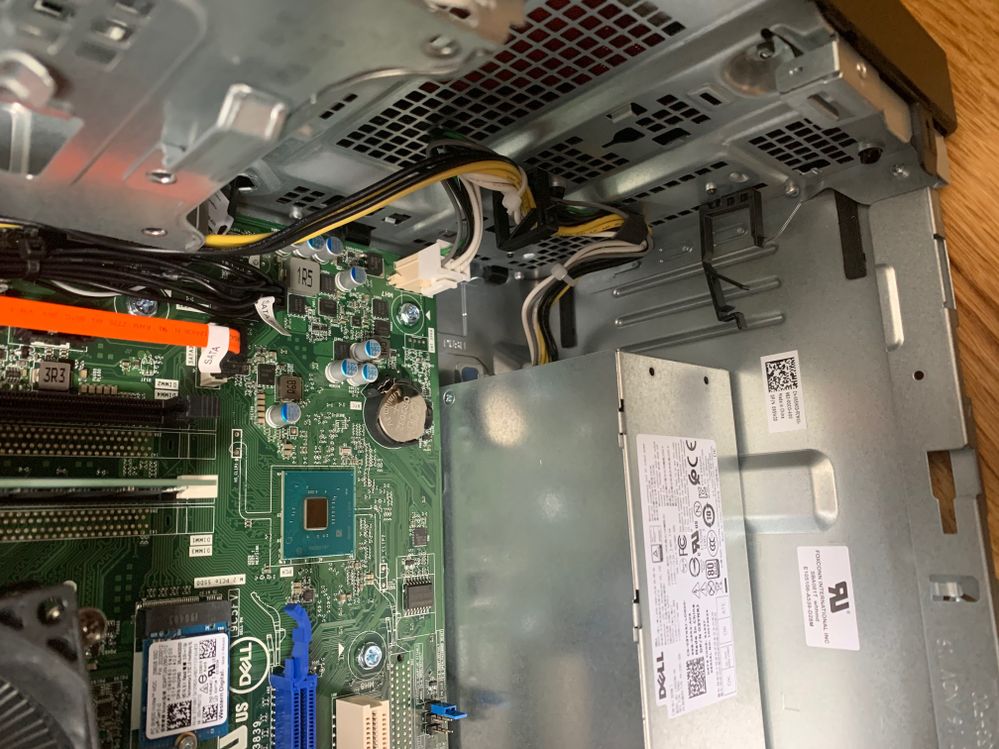

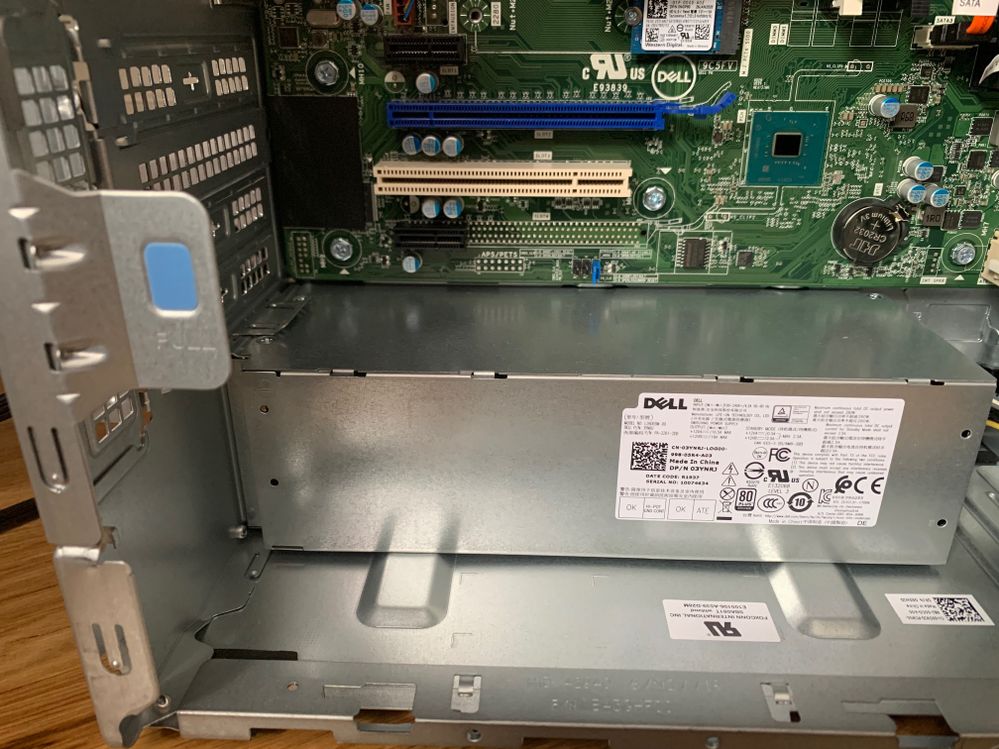

Sorry I did not realize the minitower Vostro 5090 actually uses highly proprietary motherboard w odd 5 pin ATX motherboard and 2x 4 pin ATX cpu power connector as well as slim line psu DP/N 3YNRJ or PJG3G. https://topics-cdn.dell.com/pdf/vostro-5090-desktop_owners-manual2_en-us.pdf
this is a significant change from older Vostro mini tower design. In this case upgrade of stock 260 W psu is highly challenging. one needs to map out the 5 pin pinout first. then rewire from standard 24 pin ATX.
AraNYC0101
8 Posts
0
April 20th, 2020 12:00
sorry i was going by this
https://www.dell.com/support/manuals/us/en/04/vostro-5090-desktop/vostro_5090_setup_specs/power-supply-unit?guid=guid-7578c4d9-f539-4c05-8b3e-1a2c5c938bbd&lang=en-us
what about any of these cards some require 500W?
https://www.dell.com/support/manuals/us/en/04/vostro-5090-desktop/vostro_5090_setup_specs/video?guid=guid-c408518a-e231-4c2a-9a68-534e52eb1326&lang=en-us
redxps630
9 Legend
•
14.4K Posts
0
April 20th, 2020 12:00
initially you said you have a bronze 460W stock psu. but it seems the actual stock psu is 260W. there is no way it can support RX580. maybe it can run a 1050 or 1050ti although recommended psu for those is 300W.
AraNYC0101
8 Posts
0
April 20th, 2020 15:00
its my mistake i didn't do enough research on this Model, i am disappointed that i can not do simple PSU upgrade
even if i order 460W I still need six pin connector for GTX 1660? D10 460 W EPA Bronze being sold by dell?
redxps630
9 Legend
•
14.4K Posts
0
April 20th, 2020 19:00
The Dell 460W power supply will come with 6 pin PCIe connector.
AraNYC0101
8 Posts
0
April 21st, 2020 07:00
dell 460W not available
going to have to wait
