Vostro 3671 - SSD - Where is it?
I have a 3671 and I need to swap out the SSD. Original is 250 GB, replacing with 1 TB SSD. BUT, I cannot find the 250GB drive! I see cables to the DVD drive and cables for an additional SSD but I can't find the installed drive. I have to take it out so I can use the new cloned drive. Help, please. Thanks.
No Events found!
Mary G
4 Operator
•
20.1K Posts
0
April 18th, 2021 15:00
Service manual will help with directions and a picture of the drive which looks more like like a card--not a hard drive. Hard to spot
Dell Vostro 3671 Service Manual | Dell US
speedstep
9 Legend
•
47K Posts
0
April 19th, 2021 03:00
it Might be an M2 SSD there are 4 places.
1 X 3.5 Bottom
2 X 2.5 Mounted to front case
and M2 On Motherboard
https://dl.dell.com/topicspdf/vostro-3671-desktop_owners-manual_en-us.pdf

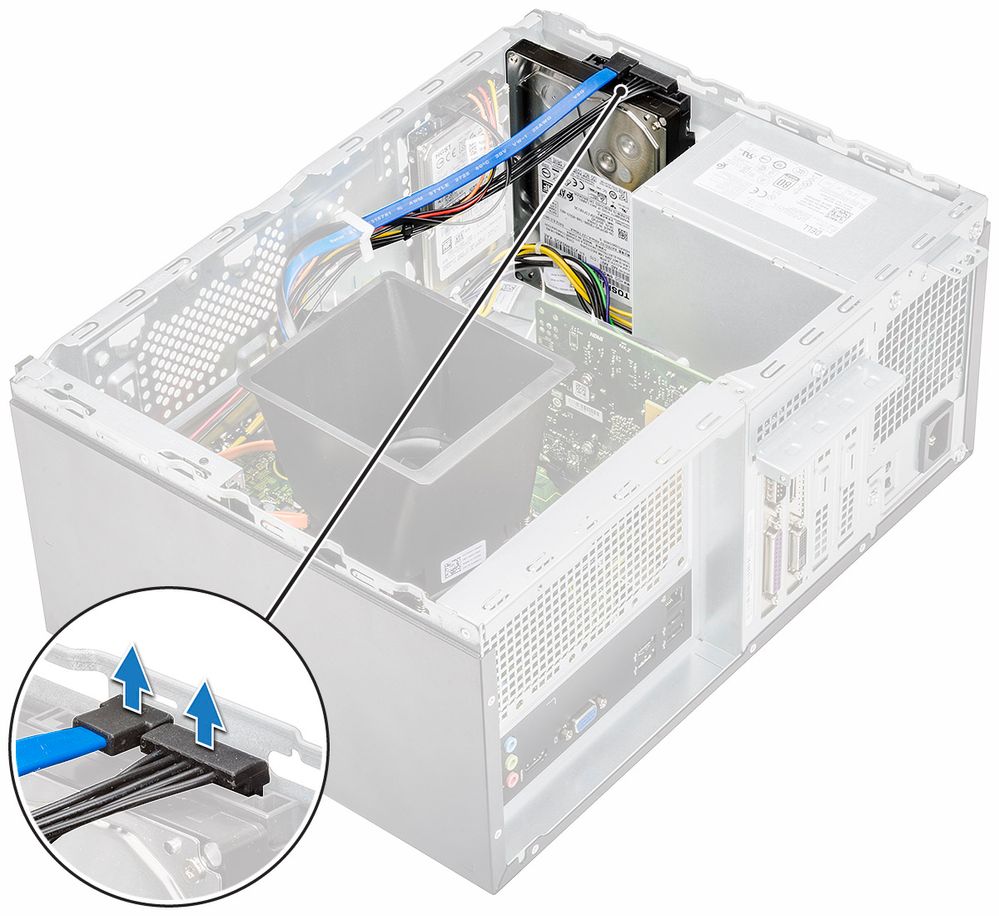

Removing 3.5 inches hard drive assembly - optional
Installing 3.5 inches hard drive assembly - optional

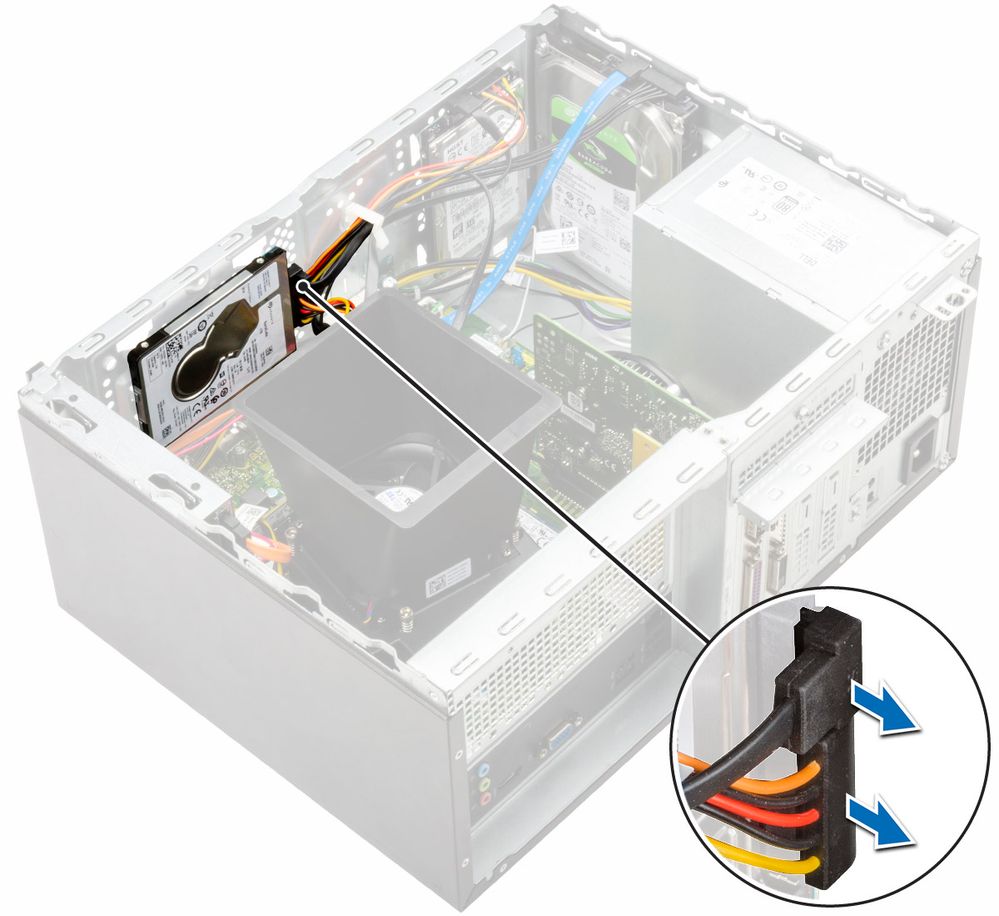

Removing the 2.5 inches hard drive assembly - optional
Installing 2.5 inches hard drive assembly - optional

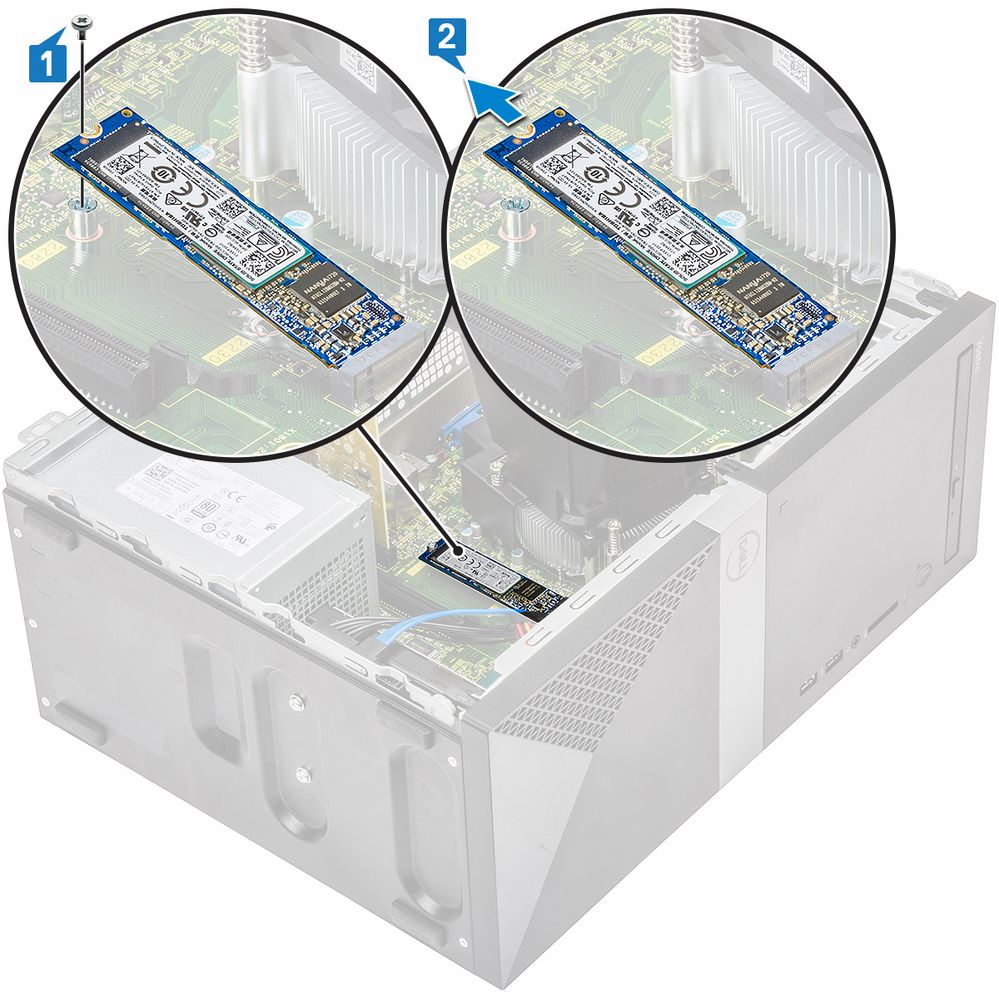

Removing the M.2 PCIe Solid State Drive - optional
Installing the M.2 PCIe SSD - optional
