Unsolved
1 Rookie
•
3 Posts
0
3456
January 3rd, 2022 21:00
Graphic Card for Vostro 3681
I purchased a Vostro 3681 a few months ago. I wanted to add a 4GB graphics card. Dell tells me this machine will only support a 2GB graphics card. Can anyone tell me what the limitation is on the 3681 that only allows a 2GB card? I suspect it's the power supply but am not sure. If it is the power supply then it's a simple matter of upgrading it. But I want to be sure before spending the money. Exactly what limits a Vostro 3681 to a 2GB graphics card? Thanks.
No Events found!
redxps630
9 Legend
•
14.4K Posts
1
January 3rd, 2022 21:00
Dell support tells you incorrect info. It can certainly support 4GB or higher vram gpu.
for example user validated GTX 1660ti 6 Gb in 3681
RX550 4 gb in 3681
upgrade psu to higher power 360/460/500w Dell psu is simple.
redxps630
9 Legend
•
14.4K Posts
0
January 4th, 2022 09:00
There is a case physical limitation. The case form factor is DT (desktop). Only some low profile card may fit. The PCIex16 slot is right next to the psu. Looks like a double slot width video card will have trouble
Izzy Luggs
1 Rookie
•
3 Posts
0
January 4th, 2022 09:00
I suspected as much. When I asked them why I couldn't install anything higher than a 2GB GPU they would tell me it was a system limitation. When I asked what specifically was the limitation they would simply say it was a design limitation. Something didn't smell right about that answer but I suspected it was simply a matter of upgrading the PSU to accomodate a larger memory GPU.
HARID
1 Message
0
February 12th, 2023 18:00
Hi Redxps630.
Do you mind share with me a link for the power supply? I am looking for one everywhere but can not find it for sure. There are few on Ebay and Ali Express but not sure if it will fit on Vostro 3681. Thank you
redxps630
9 Legend
•
14.4K Posts
0
February 13th, 2023 09:00

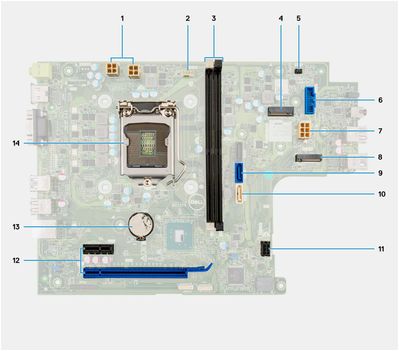

Vostro 3681 motherboard has two white 4 pin cpu socket and one proprietary 6 pin socket, which is also used in XPS 8940, Optiplex 7080/7090. The 500w psu for the latter models will be compatible with Vostro 3681.
when shop for Dell oem psu on eBay, make sure you have seller send you exact factory label on psu and picture of connectors. Aliexpress seller may include generic picture of dell psu not necessarily the one they would ship so caveat emptor.
XPS 8940 PSU =
2VD0G 360W LiteOn, E-Star, Bronze
5K7J8 500W Delta, E-Star
99TPH 500W LiteOn, E-Star
Y7R0X 500W Chicony
Inspiron G5 5090
2VD0G 360W LiteOn, E-Star, Bronze
5K7J8 500W Delta, E-Star
99TPH 500W LiteOn, E-Star
Inspiron G5 5090
PCFT5 360W Chicony, E-Star, Bronze
2VD0G 360W LiteOn, E-Star, Bronze
YCRD7 360W HuntKey, E-Star, Bronze
4FWF7 460W Chicony, E-Star, Bronze
92WNC 460W LiteOn, E-Star, Bronze
PS
Y7R0X 500W Chicony = XPS 8940, Optiplex 7080 MT
2VD0G 360W Liteon = XPS 8940, Inspiron G5 5000, Inspiron G5 5090
Dell TFX oem psu for XPS 8940, Optiplex 7080/7090/5080/5090, 500w:
Tar1q
1 Rookie
•
1 Message
0
August 30th, 2024 04:36
@redxps630 I apologize for annoying you with a 2 year old comment mate, but I would just like to ask these few questions if you wouldn't mind, what you're basically saying is that if I change the case and the psu I could use any gpu? And if so, does dell use proprietary cables for the psu so that I wouldn't be able to just buy any psu I want? Sorry again for asking after such a long time and I apologize if I had any grammatical errors
redxps630
9 Legend
•
14.4K Posts
0
August 30th, 2024 12:20
Re: if I change the case and the psu I could use any gpu?
yes. and if you do not change case but install psu outside case, you can use dual slot width gpu. if you do not mind having side panel open and gpu standing outside case, you can use full height gpu too.
Re: does dell use proprietary cables for the psu so that I wouldn't be able to just buy any psu I want
not any psu, you can use either Dell high power proprietary psu, or use standard ATX 24/4/4 psu with a 24 to 6 pin adapter for Dell 3681.
