Adjusting Y-Axis Bounds
Hi,
I created several dashboards (Foglight for Virtualization Enterprise Edition 8.3) to monitor the cpu usage among others. For comparison purposes it would be great to set the Y-Axis bounds to a maximum of 100%. Instead my dashboards use a max Y-Scale value depending on the cpu usage shown in the selected time span.
Is it possible to change the Y-Axis Max-value? I didn't find anything...
Thanks,
Bernd
No Events found!
DELL-Golan S-T
54 Posts
0
June 24th, 2016 05:00
Did you create them with drag and drop or were these wcf dashboards?
Can you please add screen snapshots to show the problem?
Thanks
Golan
BerndSch
3 Posts
0
June 24th, 2016 05:00
Hi,

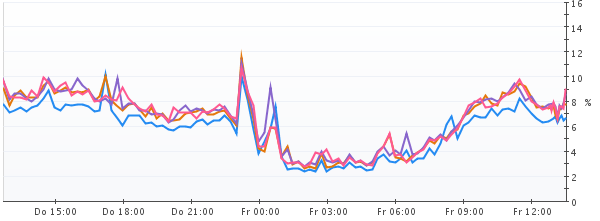

I craeted them with drag and drop. You can see the problem here, the Y-Axis has a max value of 16%...
Thanks,
Bernd
DELL-Golan S-T
54 Posts
0
June 24th, 2016 08:00

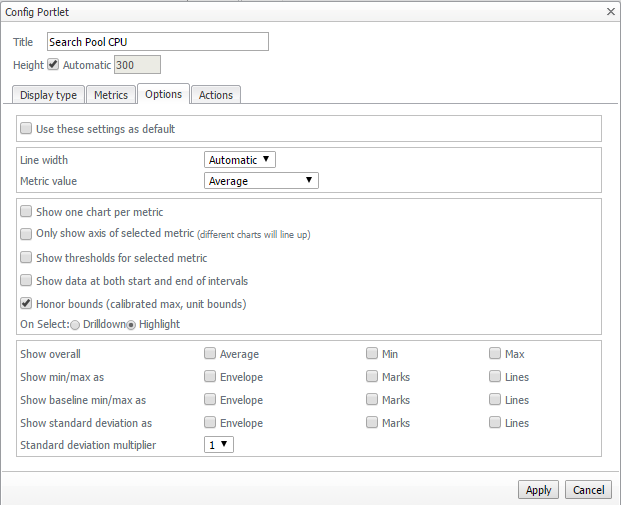

Can you see if Honor bounds is checked in the graph properties?
If not, can you please check it and see if it works?
Golan
BerndSch
3 Posts
0
June 27th, 2016 07:00
Yes, Honor bounds is checked. Unchecking it didnt change anything...
