ViPR SRM 3.7.1 - VMware and VNX SP additional metrics available?
Hello all,
Would appreciate your help to prove the value of SRM at a customer relying on the software to better understand a performance issue with a group of VMs. Additional metrics have been suggested to be monitored in VMware and VNX SPs, and possibly provide important related information (see below). I have searched "SolutionPack Metrics and Reports Matrix" but didn't find any reference. Not being a technical person, maybe I'm missing or misinterpreting something.
Can SRM gather and report the following metrics?
From VMware SP:
- WQLEN
- DSNRO / DQLEN
- AQLEN
From VNX SP:
- SQLEN on storage ports
Thank you,
Nuno
No Events found!
SarahXu1
59 Posts
0
August 1st, 2016 06:00
Hi Nuno,

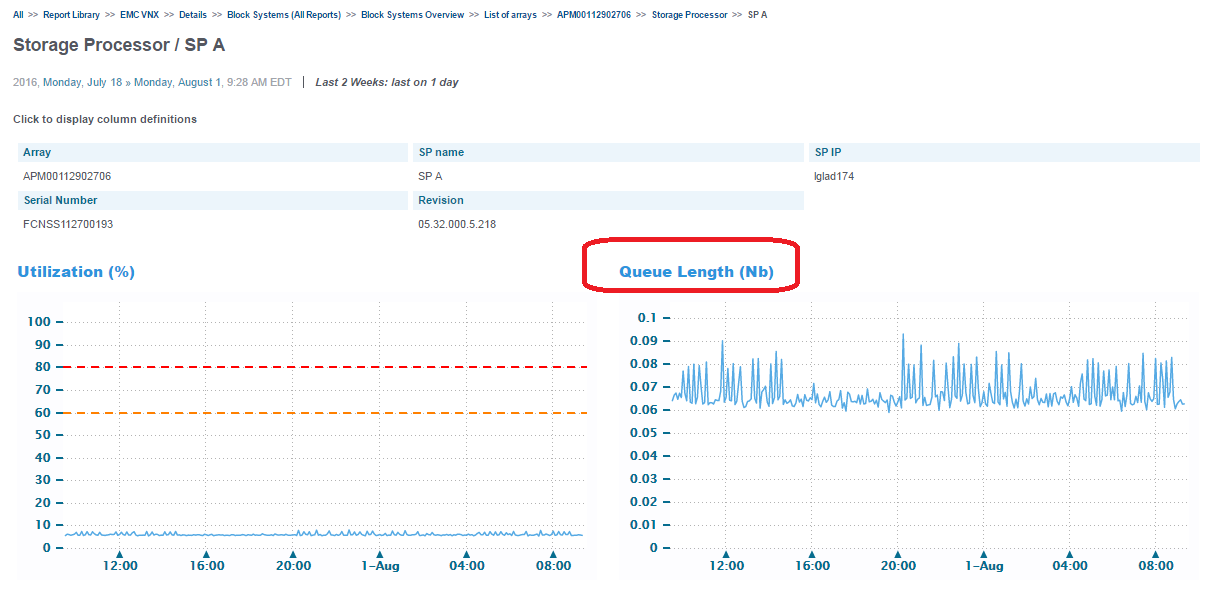

It sounds like SQLEN is storage processor queue length. We already provide this metric in 3.7.1 (See above). Is this what you want?
Thanks.
Sarah
SarahXu1
59 Posts
0
July 28th, 2016 08:00
Can you please give more information for this one?
SQLEN on storage ports
Is this a property or metric?
Thanks.
Sarah
NunoFerrao
5 Posts
0
August 1st, 2016 02:00
Hello Sarah,
From what I was able to gather, SQLEN relates to Storage Controller Queue Depth.
If by property we understand the default value set for the VNX SP port, and by metric we understand the actual value which is being registered at a given time on the VNX SP port, what we are looking for here should be the metric.
Below also some more information on the other metrics:
Thank you,
Nuno
