February 19th, 2016 15:00

Need to know link between UNIX/Linux file systems and remote LUNs

I’m trying to find a way to relate the UNIX/Linux disks to block devices or relate the block device to a LUN WWN.  I can then use the common link to relate the file system to to a LUN ID.

Below is an example of what I see in two different reports and I’d like to join them using a property they have in common.  I can’t find what that would be.  I've already tried to figure it out using the ViPR_SRM_3.7.0_Properties_Definitions.xlsx file.

Report 1

Server Name

Disk

Is Used ?

World Wide Name/LunID

Report 2

Server Name

File System Name

Block Device

Thank you and regards.

2 Intern

 •

166 Posts

May 18th, 2016 02:00

Hi Philip,

Both parttype='FileSystem' and parttype='Disk' have the property partsn to link to the LUN.

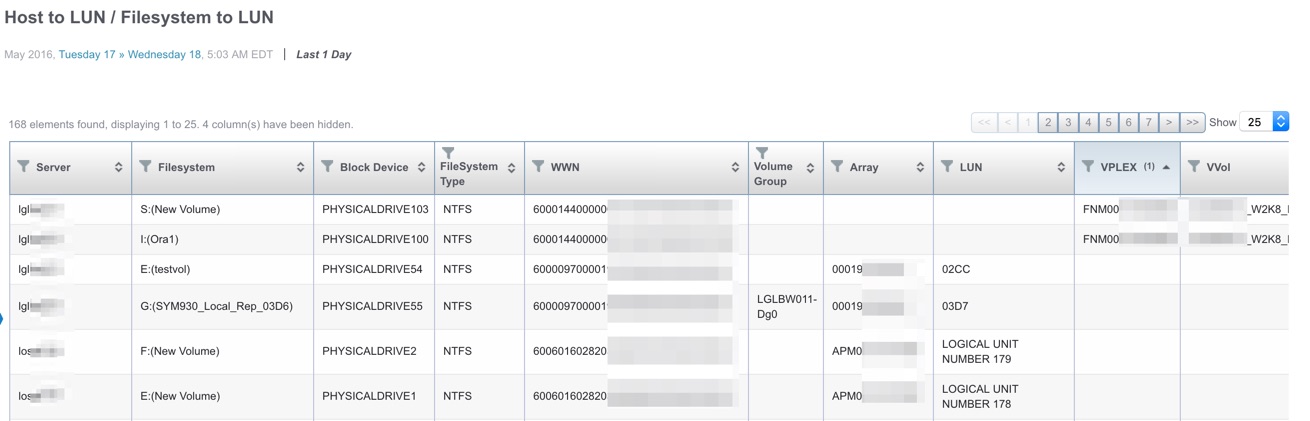

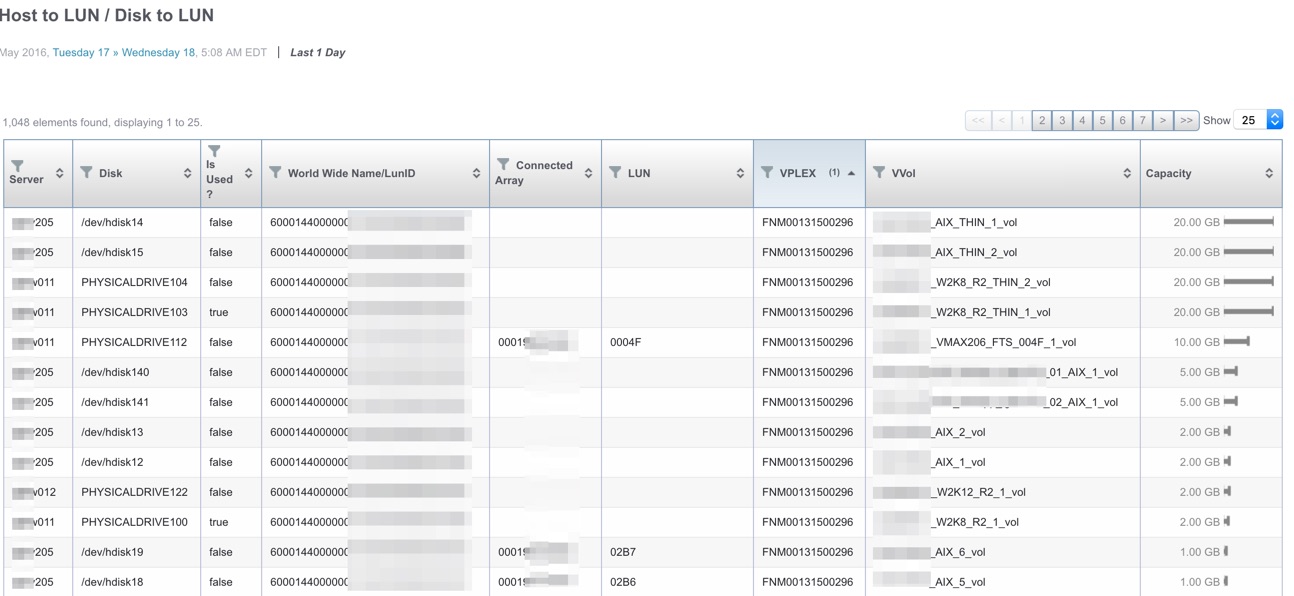

In attachement you will a report which I hope will satisfy your use-case.



HTH
