Display increment of used capacity over a month

Hi liv913,

This would definitively be easier to do with a graph or an interactive table. You might be able to achieve this by selecting "min" as the Sampling type and "use a fixed time range last 1 month" as the Column time Range.

Regards,

Isaka

You can try using the math.delta formula and give the number of periods as 30. Use the time settings for the report to have 1 day values using last aggregation.

The below link should give you an idea

ViPR SRM Report showing Storage Group Used Capacity Delta between two days.

Hi, I tried the procedure you suggested but I have some issues with calculations.

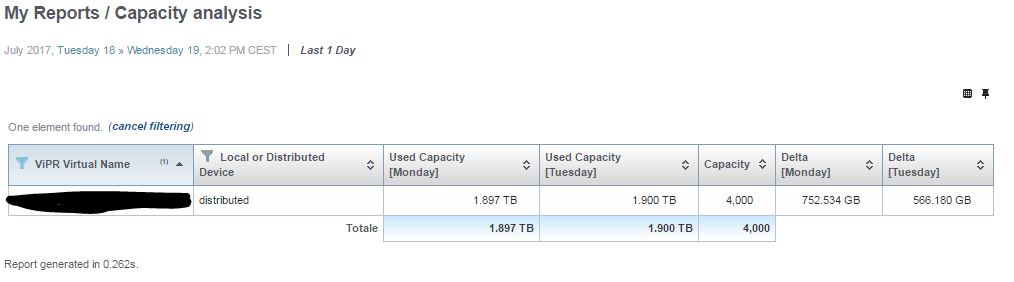

See below... I would expect a difference of 3 TB for Tuesday:

I have updated delta formula with the fix you suggested, because we're using SRM 3.7.

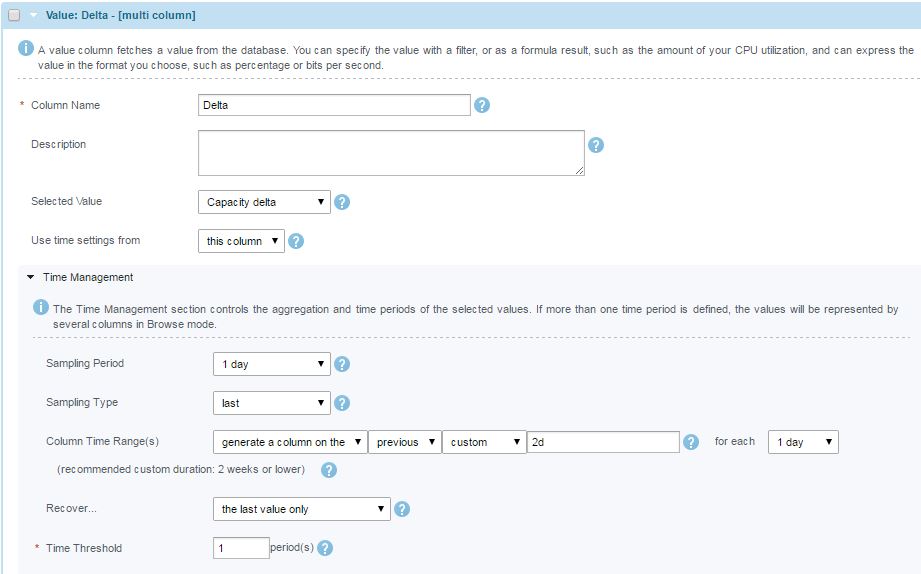

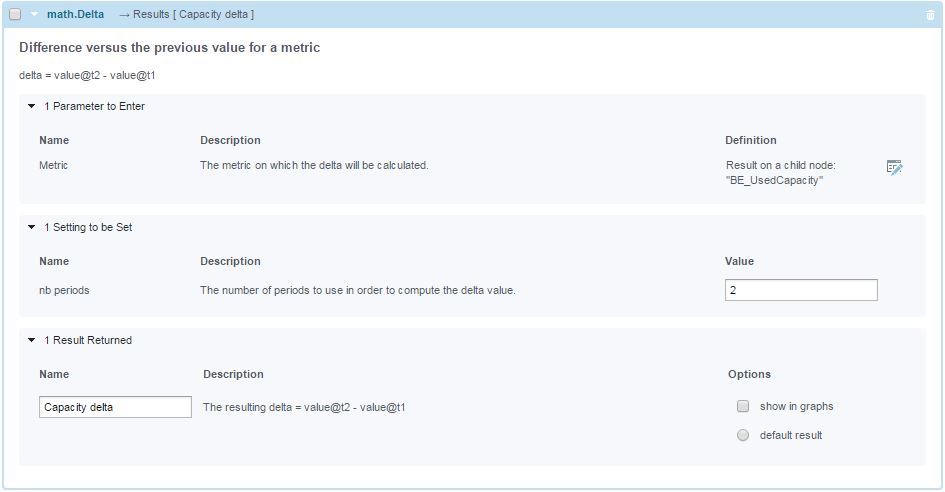

Calculations have been defined in the following way:

What am I missing?

Thanks!

Would you be able to send me a copy of your report definition ? Could you set your parent reports time configuration as follows on the Report configuration tab

Default Durationpreviouslastcurrent15 minutes30 minutes1 hour6 hours1 day1 week1 month3 months6 months1 yearcustom

Sampling Periodreal-time1 hour1 day1 week

Sampling Typeaverageminmaxsumlastcount

Here it is: https://community.emc.com/docs/DOC-59734

Could you please try importing the below report  and see if it gives you the right numbers ?

Capacity analysis Definition.xml

Mmm it seems I cannot run your report, maybe because we have a different version of SRM... see what I find in the logs:

Exception occurred during processing request: com.watch4net.apg.v2.gui.tree.expansion.parser.ParseException: Encountered " "  "" at line 1, column 19.

I am on v 4.0.1 , I have uploaded another export of the report. please try again

Capacity analysis

No I have the same error. We'll try to update SRM to v4 during the next week, maybe after that it will work...
