RP4VM: How to easily display replication status?

Couple of places wherein replication status can be checked.

1. vCenter home screen > RP4VM plugin > Dashboard

Here the Consistency group transfer status piechart indicates number of CGs in Active/Error/Init/paused/disabled state.

2. vCenter home screen > RP4VM plugin > Protection > consistency groups

When consistency group on left pane is selected, it shows all CGs transfer status.

When a individual CG is selected, either a tabular view or graphical view is shown as which site is prod and replica and replication status.

3. vCenter home screen > Hosts and clusters > select the protected VM > Manage > Recoverpoint for VMs

Here graphical representation is shown along all options to manage the CG and perform recovery tasks.

If you wish to take a look at all replication sessions in details, use option 2 as above. This will allow you to see all the sessions at once and 1 click on individual CG would provides the details on copy status.

In Recoverpoint, the replication is always shown with percentage in below scenario

1. first time initilization

2. highload

3. long resync

4. short init

the percentage is always fairly accurate i terms of how much transfer is left. The pending task in terms of MB or GB or TB is not shown nor the amount of total replication in  MB/GB/TB over a period of time.

When using RP, the initial first sync or full replication is only a small part of the complete picture since once its done for the first time, only change data is replicated even when there is a testing done on the DR VM. So once the CG is in Active transfer state ideally it will remain in active state and doesn't require constant monitoring.

If there is a change in transfer due to an issue, events are triggered which can be used in notification for further actions.

The time when the transfer shows the word percentage not the actual %, it would be helpful if you could share the screenshot.

Regards,

Mohit Sagar

The plugin enhancements for the 5.0 release are extensive with one of the enhancements being an RPO lag stat for each CG.

Regards,

Rich Forshaw

Consultant Corporate Systems Engineer - RecoverPoint & VPLEX (EMEA)

Data Protection and Availability Solutions

EMC Europe Limited

Mobile: +44 (0) 7730 781169

E-mail: richard.forshaw@emc.com

Twitter: @rw4shaw

EMC Europe Limited

Registered in England with Company No. 00990752 Registered office address: Level 1, Exchange House, Primrose Street, London C2A 2EG

The information contained in this e-mail message and any files transmitted with it are confidential. It is intended only for the addressee and others authorised to receive it. If you are not the intended recipient or the person responsible for delivering the message to the intended recipient, you are advised that you have received the e-mail in error; please delete it and notify the sender immediately. You should not retain the message or disclose its contents to anyone. Any disclosure, copying, distribution or action taken in reliance on the contents of the e-mail and its attachments is strictly prohibited.

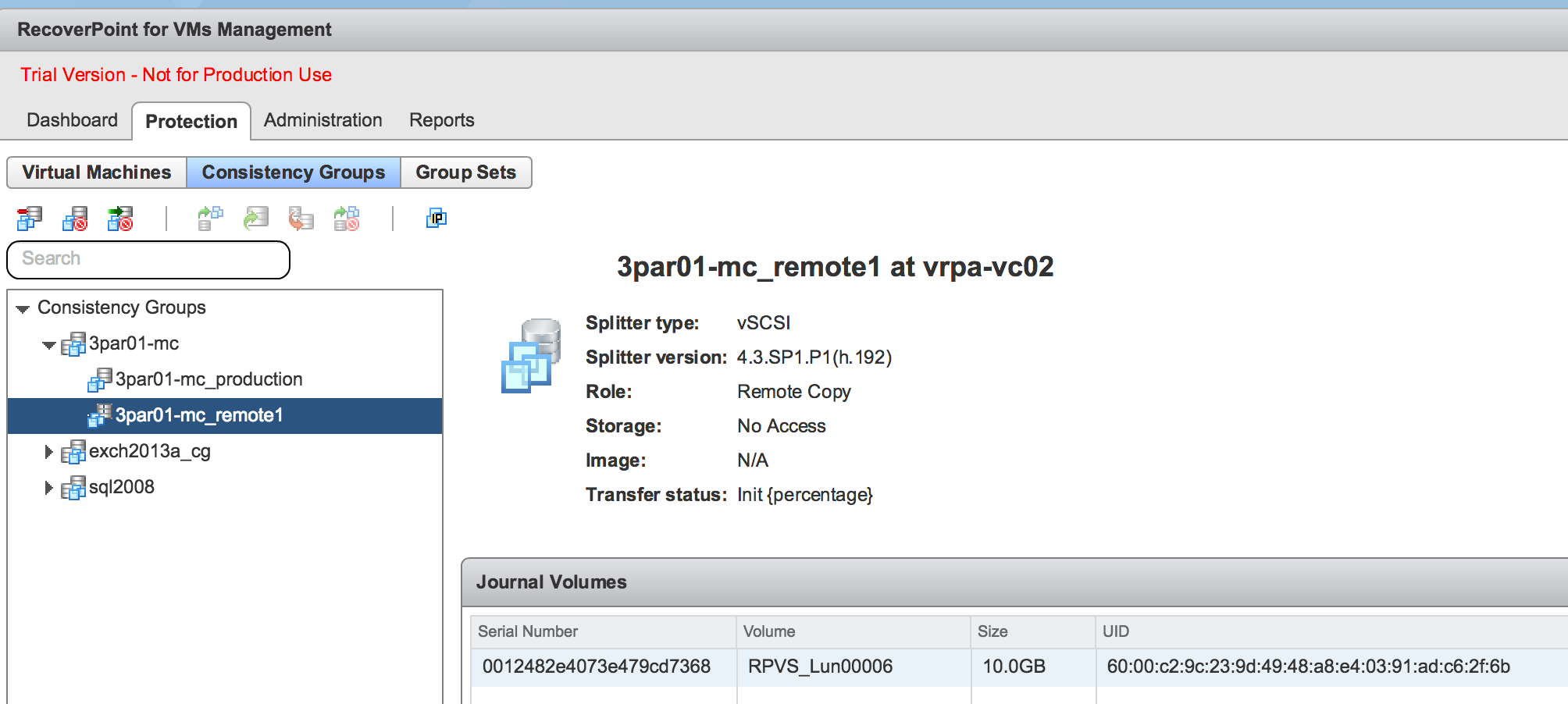

Thanks Mohit.  That is helpful.  I just wish there was a way to see the exact # of GB remaining to transfer, because that gives customers a great idea of their change rate.  For example if a DBA were to dump a 200 GB encrypted database dump onto a Protected VM, it will cause the replication to transmit 200 GB each time the DBA does this.  Seeing the percentage remaining is helpful, but it's even more helpful to see actual GB of transfer data to help see change rate patterns.  This is how vSphere Replication displays the transfer status, so I would suggest EMC considers adding this to RP4VMs also.  Also, here is a screen shot showing the Init {Percentage}.  It seems to occur during the initial sync process.  I assume this is a GUI bug?
