Data transfer paused after WAN outage
Hi all,

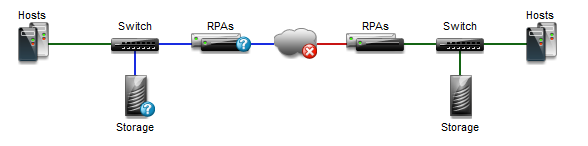

We had WAN link outage between 2 DCs the link has been recovered but it is still has red mark in Unisphere.
When connected to RPA I can do full mesh network check and all connectivity is showing as OK. I also did Throughput test ans that went fine also so I'm confused why WAN is still showing error.
Sites:
Site_A:
RPAs: OK
Volumes: OK
Splitters: OK
Site_B:
RPAs: OK
Volumes: OK
Splitters: OK
WAN:
ERROR: No remote communication between all RPAs
The groups state in Unishere is showing Error but in CLI it showing as paused.
Group:
CG_Datastore1_Protected:
Enabled: YES
Transfer source:N/A
Copy:
Replica1:
Enabled: YES
Active primary RPA: RPA 1
Data Transfer: PAUSED
Sync mode:N/A
Journal: DISTRIBUTING IMAGES TO STORAGE
Storage access: NO ACCESS
CG_RPA_TEST1:
Enabled: YES
Transfer source:N/A
Copy:
Replica1:
Enabled: YES
Active primary RPA: RPA 2
Data Transfer: PAUSED
Sync mode:N/A
Journal: DISTRIBUTING IMAGES TO STORAGE
Storage access: NO ACCESS
Is there a way to unpause them or check anything else to start replication?
Thank you
forshr
2 Intern
•
1.1K Posts
0
October 11th, 2017 04:00
Try the start_transfer command from the CLI.
Regards,
Rich
andrius_c8
3 Posts
0
October 11th, 2017 05:00
Tried and getting the error below:
Error: Data transfer to copy/copies already active.
forshr
2 Intern
•
1.1K Posts
0
October 11th, 2017 08:00
What is the current RP version and can you provide a screenshot of the issue?
andrius_c8
3 Posts
0
October 11th, 2017 08:00
Version: 3.5.SP1.P1(o.173)
So the problem is this:
In CLI I see the following:
RecoverPoint/SE
Site:
SITE1:
RPAs: OK
Volumes: OK
Splitters: 2 warnings
SITE2:
RPAs: 3 unknowns
Volumes: 1 unknowns
Splitters: 2 unknowns
WAN: 1 errors
System: OK
*******************************************
But if I do full mesh test is passes:
r1 connectivity:
================
machine: RecoverPoint_SITE1_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA2
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA2
---------------------------------------------
All OK.
*******************************************
r2 connectivity:
================
machine: RecoverPoint_SITE1_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA2
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE1_RPA2
---------------------------------------------
All OK.
*******************************************
l1 connectivity:
================
machine: RecoverPoint_SITE2_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA2
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA2
---------------------------------------------
All OK.
*******************************************
l2 connectivity:
================
machine: RecoverPoint_SITE2_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA2
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA1
---------------------------------------------
All OK.
machine: RecoverPoint_SITE2_RPA2
---------------------------------------------
All OK.
This makes me think that connectivity is fine or am I wrong?
