R310 iDRAC
Hello, can someone help me troubleshoot iDRAC on R310 unable to connect. I can ping the IP but can't get access to GUI or Putty.
No Events found!
5 Posts
0
1545
January 5th, 2022 20:00
Hello, can someone help me troubleshoot iDRAC on R310 unable to connect. I can ping the IP but can't get access to GUI or Putty.
Top
DELL-Shine K
4 Operator
•
3K Posts
0
January 8th, 2022 20:00
Looks like you do not have iDRAC Express card on the server. You need to minimally have iDRAC express card to access iDRAC GUI. Without these it will be BMC and you can only run ipmitool commands to BMC.

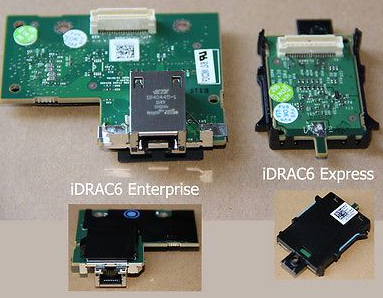

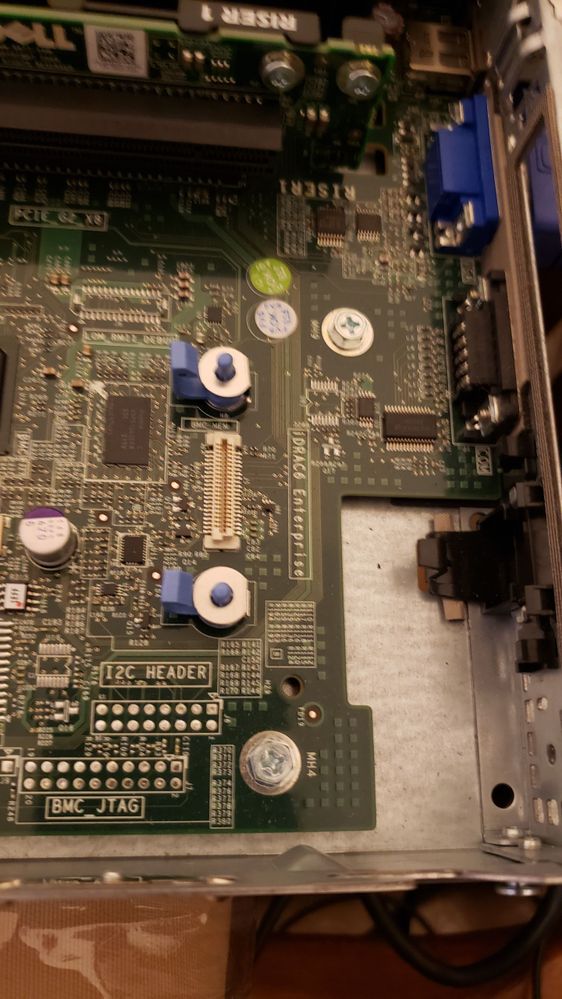

Express and Enterprise cards looks like below. You can check whether your server have these module. You can refer section "System Board Connectors" on page 166 of below link to get the location of these cards. Slot 4,5 are for Enterprise and Express card respectively.
DELL-Joey C
Moderator
•
3.9K Posts
0
January 6th, 2022 01:00
Hi @mansorkhan,
The situation might be in a pickle. Can you brief us what happened before the iDRAC is not accessible? During POST, does it have any error messages? What iDRAC version do you have, express or enterprise? Have you tried changing the iDRAC IP?
There is a couple of ways to reset the iDRAC, but if Putty is not accessible that make it more difficult, there the other ways that is listed here: https://dell.to/3n0I89u
Alternative, try removing all power cables, press and hold the power button for 15secs. Then connect the power cables back and try to turn on the server to access iDRAC.
DELL-Shine K
4 Operator
•
3K Posts
0
January 6th, 2022 01:00
If you have only iDRAC Basic GUI and Putty will not work. You can also refer below post for more details.
https://www.dell.com/community/PowerEdge-Hardware-General/iDRAC6-card-registering-on-network-and-getting-ip-but-no-option/m-p/8096025#M72005
mansorkhan
5 Posts
0
January 8th, 2022 11:00
Hello Shine,
Thank you for your reply.
BIOS VERSION: 1.9.2
BMC FIRMWARE: 1.90.04
UNIFIED SERVER
CONFIGURATOR VERSION: 1.5.2.6
PRIMARY BACKPLANE FRMWARE:1.07
Please can direct me how update new BIOS for this server which tried with in OS and failed need non OS BIOS update. R310_BIOS_2K9N4_WN64_1.14.0_01
Thank you very much for your help in this regard.
mansorkhan
5 Posts
0
January 8th, 2022 11:00
Hello Joey,
Thank you for your reply. Here is the details you ask for and beleive my system might have basic iDRAC, because it has only shared NIC1 & 2 no dedicated NIC for iDRAC. If so what is the use of basic iDRAC. I did reset iDRAC few times using your tips.
BIOS VERSION: 1.9.2
BMC FIRMWARE: 1.90.04
UNIFIED SERVER
CONFIGURATOR VERSION: 1.5.2.6
PRIMARY BACKPLANE FRMWARE:1.07
Please can direct me how update new BIOS for this server which tried with in OS and failed need non OS BIOS update. R310_BIOS_2K9N4_WN64_1.14.0_01
Thank you very much for your help in this regard.
mansorkhan
5 Posts
0
January 10th, 2022 19:00
Hello Shine,

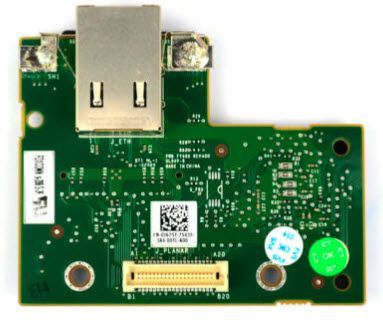

I bought from eBay this item K869T iDRAC6 Enterprise card and installed, still I can't have access to GUI. Please help me trouble shoot.
DELL-Joey C
Moderator
•
3.9K Posts
0
January 10th, 2022 23:00
Hello @mansorkhan,
May I know if you have installed the iDRAC Express card too? You will need both hardware in order for iDRAC to work.
mansorkhan
5 Posts
0
January 12th, 2022 19:00
Hello Joey,
No, I just bought K869T iDRAC6 Enterprise card and installed. Please let me know what part number I should buy.
Thanks
DELL-Shine K
4 Operator
•
3K Posts
0
January 12th, 2022 19:00
Before installing Enterprise card you need to have iDRAC Express card. iDRAC Express card will enabled iDRAC on the server and iDRAC Enterprise card will enable more features on top of iDRAC Express.
Below are part numbers of iDRAC Express card
KG1TT,JPMJ3, 85VDW, PPH2J
