March 17th, 2025 10:05
Problem with auto failover start SC5020
Hello!
While we are testing Failover functionality on SC5020 getting below error.
Error Code:
Error enabling Auto Failover : Rollback DisasterRecovery:Manager Request: 1159360266 ObjectMethod (1) Source: IPC Leader: 0 State: 2 CallObjectMethod RetVal: Failure Idx: 18 - Rollback DisasterRecovery:Manager Request: 2524203256 ObjectMethod (1) Source: API Leader: 1 State: 5 IpcSendMethodToPeers RetVal: Failure Idx: 18
Have no idea what's happened...Your response on this will be highly appreciated. Thank you!
No Events found!
DELL-Young E
Moderator
•
5.1K Posts
0
April 8th, 2025 00:49
Hello, I defintely recommend that you raise a proper ticket on this.
In the meantime I'm wondering if this could help.
https://www.dell.com/support/manuals/en-yu/dell-compellent-sc8000/unisphere-2020-ag/update-to-the-local-tiebreaker?guid=guid-48f6ffa3-a465-4212-adfd-4aeb951a1b79&lang=en-us
Would you kindly send us your service tag here? https://www.dell.com/community/en/direct-messaging
Respectfully,
Origin3k
4 Operator
•
2.2K Posts
0
March 17th, 2025 10:29
AutoFailOver indicates youre working with sync. Replication or LiveVolume. You should open a support Ticket. The error msg doesnt help.
If you dont have support revert the replication back to a single volume and than try to setup again.
We have LiveVolumes working since 7-8Y and here the Failover works.
Regards,
Joerg
(edited)
Serge_1980
1 Rookie
•
41 Posts
0
March 17th, 2025 10:33
Thank you. We have no support, so we'll try to revertSerge_1980
1 Rookie
•
41 Posts
0
March 18th, 2025 09:25
@Origin3k
Found out that this is not a feasible solution for us, as we would like to enable this on existing production LUNs.
which way to look? maybe something with the network or with the controllers?
Thank you
(edited)
DELL-Marco B
Moderator
•
3.8K Posts
0
March 18th, 2025 10:16
Ensure that your network settings are correctly configured. Misconfigurations can lead to communication issues between the controllers
Verify that both controllers are functioning properly. You can check their status through the Dell Storage Manager or directly on the hardware
Origin3k
4 Operator
•
2.2K Posts
0
March 18th, 2025 10:21
@Serge_1980
You can always setup replication and than revert and the Volume stays online and accessable or does you mean because if the amount of data and bandwith between two sites you cant setup it again?
What kind of sync youre using? LiveVolume or sync.Replication?
Serge_1980
1 Rookie
•
41 Posts
0
March 19th, 2025 07:24
@Origin3k we have LiveVolume
Serge_1980
1 Rookie
•
41 Posts
0
March 19th, 2025 07:26
@DELL-Marco B check all network settings - everything is OK, controllers with no errors. Still have this message...May be restart controllers?![]()
Origin3k
4 Operator
•
2.2K Posts
0
March 19th, 2025 07:29
Thats what we have since years.
Is every LV effected? Whats happend if you create a new(small) one? The Tiebreaker is alive?
Regards,
Joerg
(edited)
Serge_1980
1 Rookie
•
41 Posts
0
March 28th, 2025 04:44
@Origin3k
Hello! i think it is not
this problem may be related to the failover problem?
Origin3k
4 Operator
•
2.2K Posts
0
March 28th, 2025 05:49
That doesnt looks like it should. Both of your Compellent have active alarms. Please take a look and and uncheck hide acknowledge alarms also to see of them.
Here is a screenshot of one of my LV installations.
Is your DSM DC within the same L2 Subnet? Did you already have restart the DSM DC? Do you use the sh*tty Appliance or the Windows version?
You can log into your SCOS and list(remove) the tiebreaker.
Regards,
Joerg
(edited)
Origin3k
4 Operator
•
2.2K Posts
0
March 28th, 2025 06:04

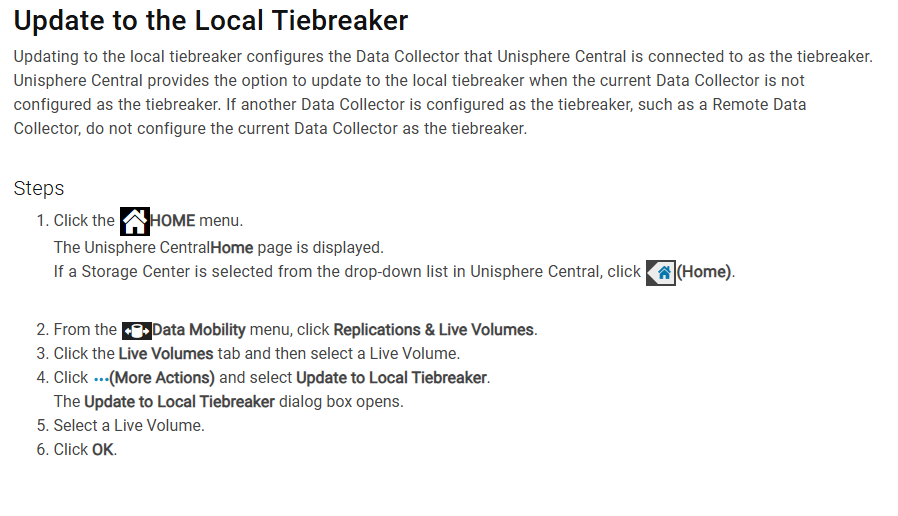

I assume youre not using a remote DSM DC right? If you are sure that you have only one DSM DC take a look to https://www.dell.com/support/manuals/de-de/storage-sc2000/dsm-2020-ag/update-to-the-local-tiebreaker?guid=guid-48f6ffa3-a465-4212-adfd-4aeb951a1b79&lang=en-us
Regards,
Joerg
Serge_1980
1 Rookie
•
41 Posts
0
April 7th, 2025 11:57
Sorry for the stupid question - where can I find this setting?
Origin3k
4 Operator
•
2.2K Posts
0
April 7th, 2025 21:10
Assign a Tiebreaker.
Serge_1980
1 Rookie
•
41 Posts
0
April 15th, 2025 17:02
@DELL-Young E
Hello! Can't find this option...
