Dell r740XD CBL0009: BACKPLANE 0 A0 NOT CONNECTED
Hello everyone! Newbie to servers here. I recently acquired a Dell R740XD with 10 12TB drives but none of them show up. At startup, I get the messages below. I have checked the cables and they are connected correctly. Is there a way to see what might be causing that problem? I believe it is still under warranty according to the service tag information.
CBL0009: Backplane 0 connector A0 is not connected
UEFI0116: One or more boot drivers have reported issues.
No Events found!
DELL-Shine K
4 Operator
•
3K Posts
0
August 27th, 2022 08:00
Can you refer below link, identify the figure represent your config and ensure all cables are connected as per the figure. Can you also let me know which storage controller you have and part # of backplane.
nmartinezjr
1 Rookie
•
6 Posts
0
August 27th, 2022 10:00
Hi, could you resend the link, please? I have the Dell PERC H740p mini with N06J7 12x3.5" HDD s on BP, No Mid-Bay and 2x3.5" HDDs Flexbay.
DELL-Shine K
4 Operator
•
3K Posts
0
August 28th, 2022 04:00
https://www.dell.com/support/manuals/en-us/poweredge-r740xd/per740xd_ism_pub/cable-routing?guid=guid-06637506-d7db-43e6-9c15-be4a832d4fbe&lang=en-us
nmartinezjr
1 Rookie
•
6 Posts
0
August 28th, 2022 06:00

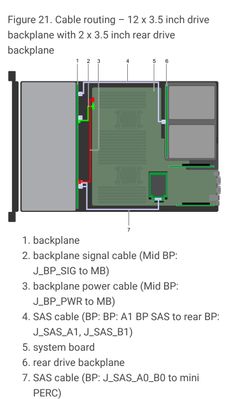

I have figure 21
DELL-Young E
Moderator
•
5.1K Posts
0
August 29th, 2022 00:00
Hi I see that you believe your system is still in warranty. It's best diagnosed with the actual log. Would you be able to send us logs or raise a official ticket for that?
nmartinezjr
1 Rookie
•
6 Posts
0
August 29th, 2022 04:00
How do I raise a ticket and send the log?
DELL-Marco B
Moderator
•
3.8K Posts
0
August 29th, 2022 05:00
Hello,
to contact technical support and open an incident you can do it from here
https://dell.to/3ARI5UX
Thanks
