3620 Drive Caddy needed.
I have Dell Precision 3620 and I want to add an extra Drive to the machine. The current HDD caddy/cage already has two drives installed.
I noticed that there are brackets attached to and below the Optical Drive cage which look like they could support a drive cage. If so what would it be called and does anyone know the part number for it?
I have an HBA card which supports both SAS and SATA drives.
See my picture attached.
Thanks in advance.
No Events found!
mbc320
1 Rookie
•
35 Posts
0
February 10th, 2025 20:43
Here's the picture...![]()
mbc320
1 Rookie
•
35 Posts
0
February 10th, 2025 23:47
@mbc320 I cannot edit my posts and picures do not display. What is up with this?
mbc320
1 Rookie
•
35 Posts
0
February 10th, 2025 23:49
BTW For your Information, The brackets do not support any kind of cage. I figured it out.
redxps630
9 Legend
•
14.4K Posts
0
February 11th, 2025 00:53

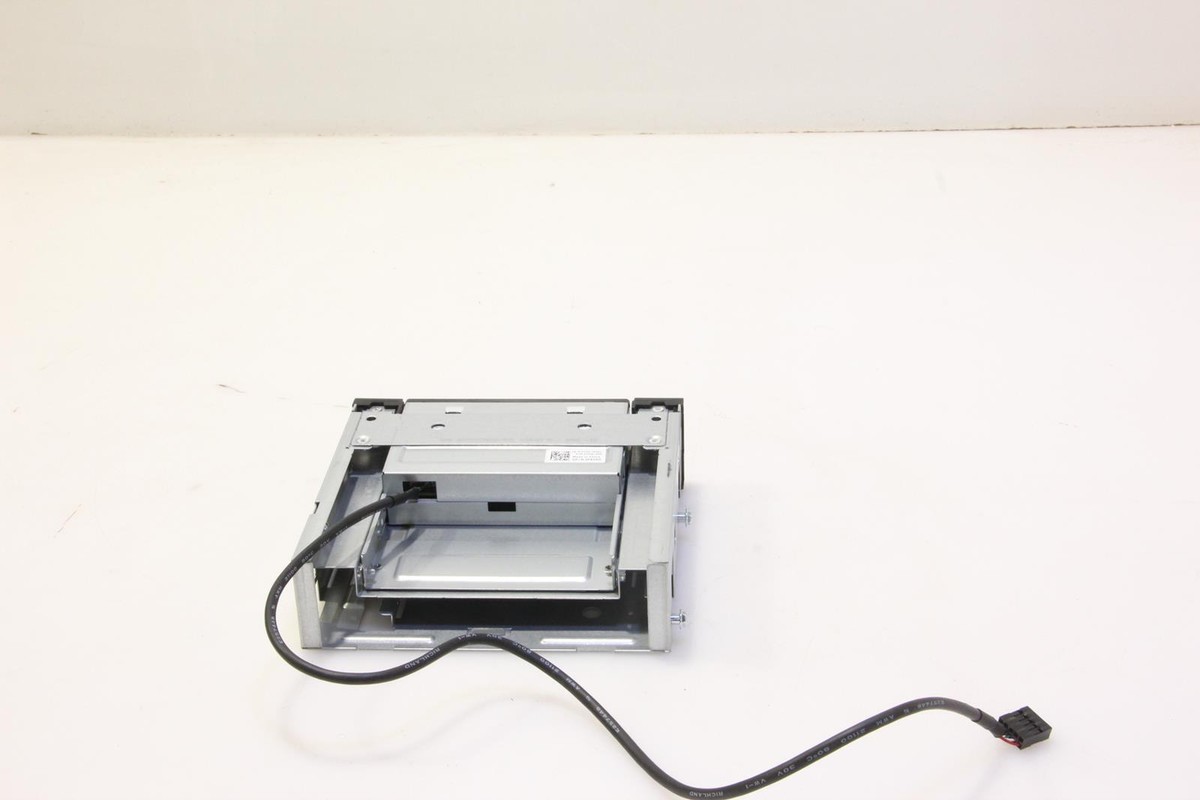

you can install a media card cage but instead of the media card reader install a 3.5" hdd
https://www.ebay.de/itm/266956373810
(edited)
Chino de Oro
9 Legend
•
8.1K Posts
0
February 11th, 2025 03:17
You can utilize your optical bays with adapters for HDD.
bradthetechnut
7 Technologist
•
8.9K Posts
0
February 11th, 2025 03:36
Favorite hot swap HDD bay (I have them in my 3620): ORICO 5.25 Trayless Hot Swap Mobile Rack CD-ROM 3.5 inch Internal SATA Hard Drive SSD Adapter
mbc320
1 Rookie
•
35 Posts
0
February 11th, 2025 13:42
@Chino de Oro Those bays are already full.
mbc320
1 Rookie
•
35 Posts
0
February 11th, 2025 13:56
@redxps630 I had one of those in a 9020, but I removed it to use the space for an HDD.
mbc320
1 Rookie
•
35 Posts
0
February 11th, 2025 14:09
I have solved it and now have 4 HDDs and 2 SSDs installed. I cannot use swappable drives because I need the drives available 24x7 and am phasing out, for the most part, external USB drives.
bradthetechnut
7 Technologist
•
8.9K Posts
0
February 13th, 2025 04:02
There's adapter cages that'll hold one 3.5" drive and a 2.5" drive in one optical drive bay. Is that what you're using? Also adapters that'll hold two 2.5" drives in one HDD bay.
(edited)
mbc320
1 Rookie
•
35 Posts
0
February 19th, 2025 14:39
Cany you post some links to those adapter cages? Thanks.
bradthetechnut
7 Technologist
•
8.9K Posts
0
February 21st, 2025 03:38
I mentioned 2 different adapters. Which one are you looking for? They can also be Googled or searched in search bars.
(edited)
mbc320
1 Rookie
•
35 Posts
0
February 21st, 2025 03:49
Can you post links to the ones you are referring to? Then I can decide whixh is besy for my needs.
Thanks.
bradthetechnut
7 Technologist
•
8.9K Posts
0
February 21st, 2025 04:03
https://a.co/d/5DcBfv1
https://www.ebay.com/itm/392597545146?mkcid=16&mkevt=1&mkrid=711-127632-2357-0&ssspo=DW1fTNyPQDu&sssrc=4429486&ssuid=4aJmgrhGRgO&var=&widget_ver=artemis&media=COPY
The adapter for DVD drive bays hold more HDD's than what I remembered. Here's a screengrab of the 2nd one I linked:
bradthetechnut
7 Technologist
•
8.9K Posts
0
February 21st, 2025 04:18
Since there's only 4 data ports on the MB, you'll need a PCIe card that has more data ports. I linked two for example: https://a.co/d/fdoyqlp
GLOTRENDS SA3116J 16 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Compatible with Windows,Linux,Mac OS,NAS
