dell r410 raid 5
I have a SAS 6/ir in the one I have and it only supports 0,1. I need to know what controller and any extra parts needed to get the raid 5 working in the r410. Also what needs to be disabled for the controller that's in the r410 for the new to work.
So, do I need the H700 Card to get this to work? I would like to get the Dell part numbers also. The manual I have for the r410 says it supports raid 5. Please let me know. I have SAS drives. This is also posted in enterprise, which I did not see this forum to start with.
Thanks
No Events found!
DELL-Young E
Moderator
•
5.2K Posts
0
September 22nd, 2025 04:50
Hello thanks for choosing Dell and welcome to our community.
Yes SAS 6/iR Modular supports 0/1.

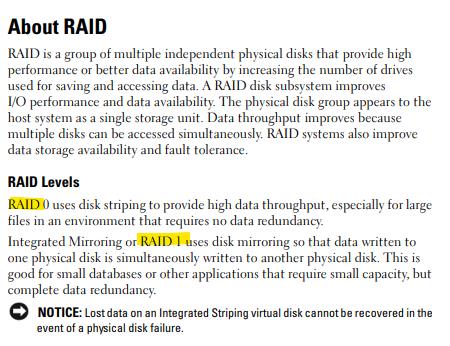

https://dl.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprtl_adapters/dell-sas-6ir-intgtd-a…

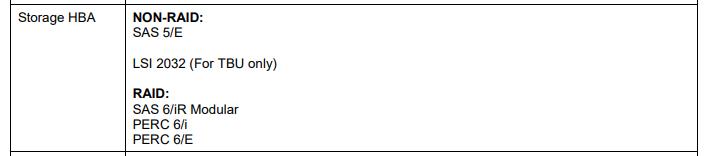

R410 supports other PERCs
https://i.dell.com/sites/doccontent/business/solutions/engineering-docs/en/Documents/server-powered…

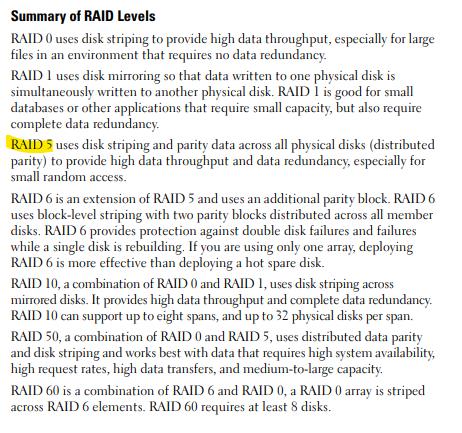

PERC 6/i can do RAID 5
https://dl.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprtl_adapters/poweredge-rc-6i_user'…
For p/n and cables, you can try sales.
Respectfully,
Origin3k
4 Operator
•
2.3K Posts
0
September 20th, 2025 06:04
You need a Perc 6i or H700 for that kind of RAID level.
Cant help you with SKU/Partnumbers. Also if cables or propper backplane is needed.
Regards,
Joerg
