R720 GPU Riser

Hello,

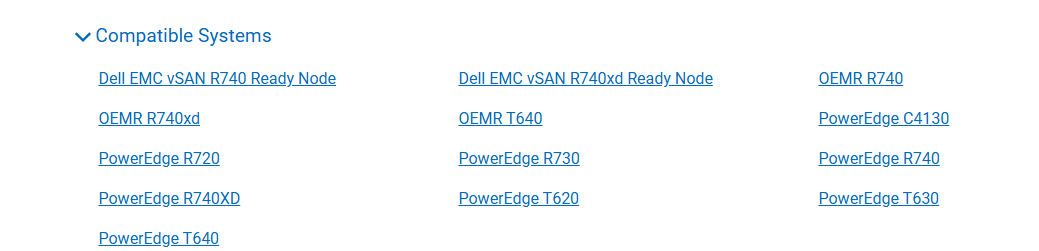

https://www.dell.com/support/home/en-mk/drivers/driversdetails?driverid=h0n8r&lwp=rt

AMD Windows Server 2008/2012 R2 GPU Driver



Then I would like to ask you to take a look at page 22 here (GPU support)

https://dl.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprt_poweredge/poweredge-r720_reference-guide_en-us.pdf

and see if you are following this technical guide.



You can also send us your service tag through https://www.dell.com/community/en/direct-messaging

Respectfully,





Hello we checked your tag- it seems like you upgraded your CPU and PSU.



https://www.dell.com/support/manuals/en-us/poweredge-r720/720720xdom/gpu-card-installation-guidelines?guid=guid-268578e4-b96b-43ba-ac13-58c567cbb670&lang=en-us
Dell PowerEdge R720 and R720xd Owner's Manual

-GPU Card Installation Guidelines-
NOTE: Internal GPU cards are supported on the PowerEdge R720 and not on the PowerEdge R720xd.
NOTE: Due to the high power consumption of GPUs, the ambient system inlet temperature is restricted to 30 °C to ensure adequate system cooling when one or more GPU cards are installed in PowerEdge R720. Note that this is less than the standard environmental specification of 35 °C.
The PowerEdge R720 must be installed with two processors.
The processor must be of 115 W or less.
The processor must use a GPU kit low-profile heat sink.
Ensure the GPU enablement kit is available.
GPU enablement kit includes:
Low-profile heat sinks
System board support brackets
Power cables for the GPU cards
Filler brackets with closeout EMI shield for unoccupied PCI-e slots
All GPU cards must be of the same type and model.
Ensure that your system uses the redundant 1100 W power supplies.
You can install up to two double-wide GPU cards.
NOTE: Two double-wide GPU cards configuration requires optional riser 3.
You can install up to four single-wide GPU cards.

Ensure the GPU enablement kit is available.
GPU enablement kit includes:
Low-profile heat sinks
System board support brackets
Power cables for the GPU cards
Filler brackets with closeout EMI shield for unoccupied PCI-e slots



->It looks like you need the GPU enablement kit at this point.



https://www.dell.com/support/contents/en-us/videos/videoplayer/how-to-replace-gpu-card-for-poweredge-r720/6079814998001
How to Replace GPU Card for PowerEdge R720



Respectfully,

Hi,

Can I run both double-width GPU on a single 1100W power supply?

GPU enablement kit:
Low-profile heat sinks -> For testing, we can use the standard one
System board support brackets -> can you provide what brackets required?
Power cables for the GPU cards -> Already have these and using Dell Geniune Cables. Used on both risers
Filler brackets with closeout EMI shield for unoccupied PCI-e slots -> can you provide what filler brackets required?

So why am I still getting an error when the second GPU is installed in the middle riser?

Hello,



You would need two 1100W PSU:

GPUs require a redundant 1100W power supply and GPU enablement kit

That is in the list Young posted



Slot priority for double wide GPUs is slots 6 and 4

Page 64

https://dl.dell.com/topicspdf/poweredge-r720_owners-manual_en-us.pdf



Do you have dual processors? You will need CPU#2 for pcie slot 4.



NOTE: Two double-wide GPU cards configuration requires optional riser 3.

Part #:CPVNF

Part Desc.:ASSY,CRD,EXP,RSR,LFT,OPTL-X16





Note I don't see AMD S7150 listed so it may work or maybe not.

GPUs (R720 only)

Page 33

https://i.dell.com/sites/doccontent/shared-content/data-sheets/en/Documents/ESG-PowerEdge-R720-and-R720xd-Technical-Guide.pdf





I will also make note: As of the end of 2022 the 12th generation platforms reached the end of support life, so I'm working as best effort to help you.



Hi,

so this is what I have in my system:

Riser3 = 0VKRHF
Riser 2 = 0MPGD9

Riser 1 = 00D3F6

I do have Dual CPU, and so the Slot 4 it is showing as SLOT4_G3_X16 ( CPU2)

Hello, as Charles and I were both pointing out earlier, you will need GPU enablement kit. It is best that you get touch with your local support to see if it's available.  Contact Technical Support | Dell US



Respectfully,
