Dell Power Edge R720xd not opening bios setup or any other utility
it seems it doesn’t want to do anything with opening Bios or Boot manager raid utility etc, l the iDrac does its job and functions but only it does nothing after the CPLD and firmware versions displays even when I start the raid utility it’s saying will load following initialization but th utility doesn’t pop up als the f2, f10, f11 does nothing it saying that it is entering but it doesn’t even when I wait several hours.
also IDRAC reset, CMOS reset, Nvram clear, Forcing boot through web ui, Forcing boot to bios trough racadm, Disable the lifecycle controller, Updating firmware also back rolling,
Flashing from Sd, Trying to force boot from usb, Trying to force boot manager, Removing hardware to minimal POST, But until today I have never seen the BlOS Setup or the boot manager.
DELL-Young E
Moderator
•
5.2K Posts
0
August 4th, 2025 03:36
Hello thanks for choosing Dell.
You can try min to post,
•One Power Supply
•Control Panel (for power button functionality)
•Working cable connection between control panel and system board
•One Processor (CPU) in socket CPU1 (minimum for troubleshooting)
•One Memory Module (DIMM) installed in socket A1
•System Board
•Backplane
if no go, replacing mobo is one option
or you can even try different CPU/DIMM combo.
R720xd 2 dual CPU
so if one CPU and one A1 DIMM do not work you can try another pair.
Let us know if you have any further questions.
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 06:15
Hello thank you for the reply.
unfortunately I have already did try these combination still same results.
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 06:26
So do I need to replace the motherboard and if so can I bring over the enterprise license I have the .xml in an folder
DELL-Young E
Moderator
•
5.2K Posts
0
August 4th, 2025 06:52
Hello, I believe now is the time to officially raise a ticket to your local support specially if it involves part replacement and license transfer as well. Contact Technical Support | Dell US

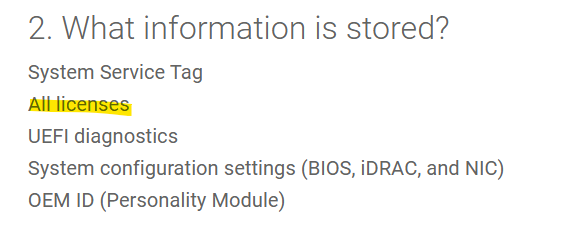

Yes the license is stored in the control panel, it should be transferred with the easy restore assuming the board is new/properly refurbished. Here,
https://www.dell.com/support/kbdoc/en-us/000142633/dell-poweredge-how-to-restore-the-service-tag-using-easy-restore?msockid=1a5e8444c37364fc023690acc29e65bd
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 11:05
I don’t know if I can make a ticket the device is not registered to me in sight it online from someone else and it’s now in the Netherlands but it came from Czech Republic don’t know the company nor any info about that
DELL-Marco B
Moderator
•
3.9K Posts
0
August 4th, 2025 14:41
Hello please try to retrieve more information about the order number and the original company who bought this server. Otherwise we need to send you a new license
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 16:31
I have asked the person who I bought it from asked about it but I’m not sure if he knows it.
DELL-Chris H
Moderator
•
9.5K Posts
0
August 4th, 2025 16:44
You may want to look into filling out the Change of Ownership form in order to get the server assigned over to you. Once that is completed, and you can verify the ownership information to us, then we should be able to resend the license, if available. You can find the change of ownership form here.
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 16:55
It’s saying company but I don’t know the company name I bought I through Marktplaats the Dutch EBay where you can buy and sell something what do I need to fill in for the company name or previous owner
DELL-Chris H
Moderator
•
9.5K Posts
0
August 4th, 2025 16:58
The link here discusses the ownership transfer for when it is purchased through sites like Amazon and Ebay. You should be able to fill it out as specified and submit it, Now it can take 7 to 10 days to reflect the new ownership.
Ylias
1 Rookie
•
12 Posts
0
August 4th, 2025 16:59
Okay so I have the info from the previous owner it’s from Troostwijk auctions it was bought from a company that was discontinued and was bought buy the buyer I bought it from in February 2022
DELL-Chris H
Moderator
•
9.5K Posts
1
August 4th, 2025 17:10
I am not certain that is correct, as I don't have the svc tag for the server to pull it up. I have sent you a private message, you can use that to respond with the svc tag, the company name, and your contact details, then I can verify if that is correct.
Ylias
1 Rookie
•
12 Posts
0
August 6th, 2025 19:19
i have replaced the motherboard but i dont get a message thta i can fill in the service tag i also cant replace the service tag is their a methode to do this i want to activate the license of the idrac but it gives me the massage that the tag is not the same, the xml i have is transferable and prepentuial but what do i have with a licens that cant be transferd evem tough their is payed for it someday
DELL-Chris H
Moderator
•
9.5K Posts
0
August 6th, 2025 19:26
Since around the 11th generation of Poweredge servers we haven't been able to change the svc tag on the systems. After that point it would require replacing the motherboard with a new unbound one and upon replacing it assigning the correct svc tag to the server.
Ylias
1 Rookie
•
12 Posts
0
August 6th, 2025 19:28
but this is a 12th gen and its a v6 motherboard isnt it working that way
