October 30th, 2023 19:39
Optional cooling fan assembly not working?
I have a T630 PowerEdge and recently purchased and installed a new GPU cooling fan assembly. I'm questioning if it is working.
There are 2 fan assemblies installed at the rear of the case in the cooling shroud but iDRAC -> Hardware -> Fans only shows 2 System Board fans installed. I was expecting a total of 6 fans to be shown if the cooling fan assembly were plugged in and working properly.
What am I missing?
No Events found!
MVerBerkmoes
1 Rookie
•
9 Posts
0
November 1st, 2023 17:14
#1 - P/N: 06KK42
I think it figured it out .. I ordered a fan assy for a T640 ( P/N: 06KK42) when what I need is a fan assy for a T630 (P/N: 056F1P)?
(edited)
DELL-Young E
Moderator
•
5.1K Posts
0
October 31st, 2023 01:19
Hello thanks for choosing Dell.
It’d be helpful if we get a hold of the part # for the fan.
https://dell.to/3MpEQJM
If you see that link, which is newly added? #1? Or #9?
Respectfully,
SSGTR
1 Rookie
•
5 Posts
0
March 24th, 2025 17:44
Hijacking this thread!
I have a similar situation, i have a T630 and i need the front fans and cage, #1 in the manual, but i cant find the P/N: 056F1P, i only find P/N: 06KK42 that are for T640, they are compatible or not with the T630?
DELL-Charles R
Moderator
•
4.4K Posts
0
March 24th, 2025 18:16
Hello,

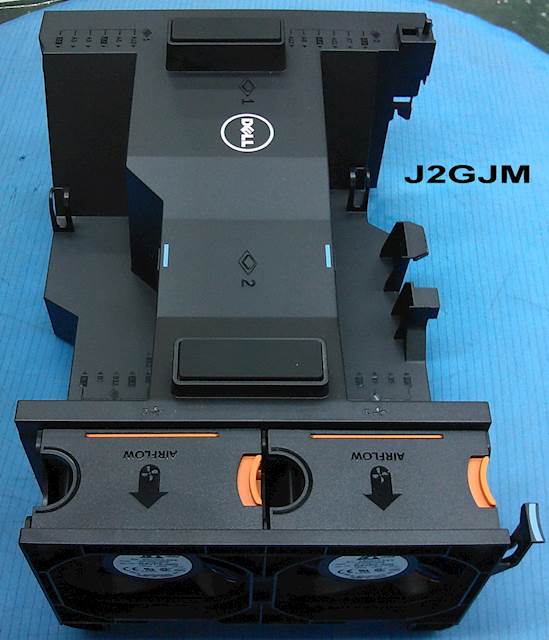

Shroud
Part #:J2GJM
Part Desc.:ASSY,SHRD,PLSTC,PRC,T630
ASSY Shroud For Processor, Plastic
It comes with 2 fans
Optional cooling fan assembly
Part #:56F1P
Part Desc.:ASSY,CARR,LKG,MID,FAN,T630
ASSY Carrier Middle Fan, 92X92MM, 12V, Locking
Looks like it comes with 4 fans
SSGTR
1 Rookie
•
5 Posts
0
March 24th, 2025 22:09
Thank you for the pics, I checked the other T630s and it's the same part number 056F1P, do you have pictures of the 06KK42 for the T640?
I only found the 06KK42 for sale, if they're the same I'll try!
DELL-Charles R
Moderator
•
4.4K Posts
0
March 25th, 2025 12:00
Hello
56F1P shows for the T630 only.
You can contact Sales and ask for the Spare Part department since 56F1P is a Service part number.
SSGTR
1 Rookie
•
5 Posts
0
March 27th, 2025 22:07
@DELL-Charles R Thank you Charles, i contacted sales and they don't have 56F1P, only 6KK42, and they don't know if compatible or not with the T630, I'm afraid to order and end up not working, the T630 and T640 are very similar machines, can you help me with that?
SSGTR
1 Rookie
•
5 Posts
0
March 27th, 2025 22:08
@MVerBerkmoes After all, did the 6KK42 work on the T630?
MVerBerkmoes
1 Rookie
•
9 Posts
0
March 27th, 2025 23:23
@SSGTR - No .. it did not fit.
MVerBerkmoes
1 Rookie
•
9 Posts
0
March 27th, 2025 23:26
@SSGTR - There's a ton of them for sale on the interweb. You're looking at about $350 fro a complete unit.
I have the four fans, GPU power cables and board, but I need a 56F1P cage to mount the fans in.
(edited)
SSGTR
1 Rookie
•
5 Posts
0
March 28th, 2025 02:49
@MVerBerkmoes
For me it will cost $790 with taxes, and i need 4!
Look like the cage is almost the same, the T640 have some cuts for the fans, will not be a issue for the T630 fans, the headers are completely different, but only the metal cage is needed.
Sorry about the poor image quality, i don't have any real life examples
