S5148F-ON Multicast Routing support?

ai_dd,

I believe they did add the support for the S5148f-On on 10.5 and newer versions, but I am not sure. I am trying to find a reference to that and will let you know if I find anything to confirm that.

Thanks Chris,

It also appears on the data sheet that a maximum of only 36 LAGs are available on the S5148F. It would be great to know if that is still the case too.

Thanks

Hello,

in this compatibility list the S5148F is supported on OS up to 10.4.3.8

https://dell.to/3I8WVKo

 OS10 supports a maximum of 128 port-channels, with up to thirty-two ports per channel.

That is what appears to be the case regarding the version, as far as multicast routing I would agree as well.

Hi Marco,

Thanks for checking. To be clear, does that mean the S5148F isn't compatible with OS 10.5 and newer?

While the OS supports 128 port channels, the datasheet for the S5148F says it only supports 36 port channels.

Also, in the 10.4.3 user guide there are notes to say that multicast routing was not supported on the S5148F. Can we say that this will still be the case on 10.4.3.8?

Thanks

Additionally, it appears from the data sheet that the S5148F can support a maximum of just 36 LAGs. If it is still the case, that would be wonderful to know as well.

Thanks

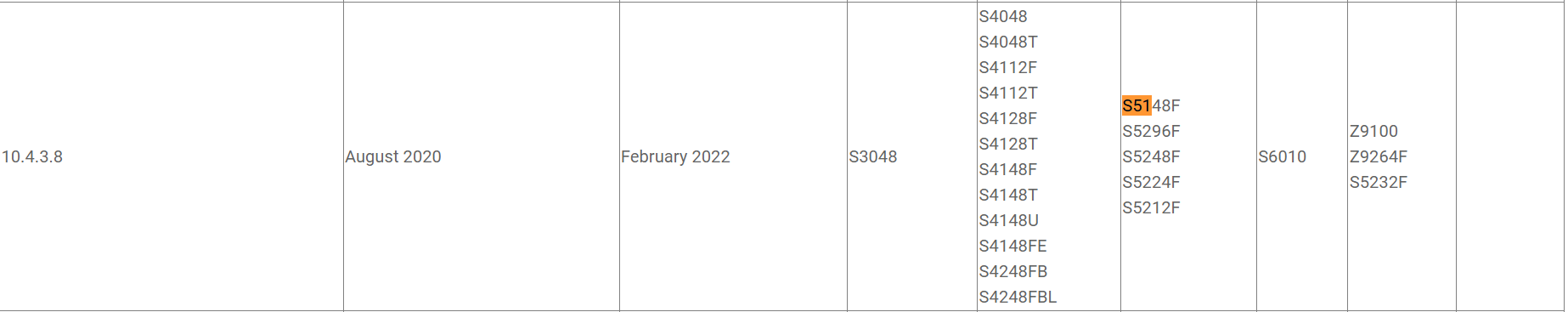

Please see the attached (OS10 supported matrix for S5100 series platform).
10.4.3.8 is the latest firmware for S5148F switch... https://dell.to/3HT2FGF.. refer to the guide at page# 590 - 644.
