Powerswitch S4048 LAG using ports from 2 switches in VLTI

Hello,

you can have more information about this in this manual

Dell Configuration Guide for the S4048–ON System 9.14.2.4

page 1039

Hope it helps

Thanks

Hello Marco,

Thank you for the reply

So as described in the Page 1039, i can create a port channel and create a new VLT domain different from the VLTI domain ?

and then i will add for example port 53 from switch 1 and repeat same steps and add port 53 on switch 2 to that same port channel ?

Hopefully you can help clarify the steps further.

Thank you.

Hi @Joe Chaaya,

Yes, this sounds to be correct. Try using the guide Marco provided and let us know if the configuration works for you. By the way, what is the OS/Firmware on your S4048?

Hello Joey,

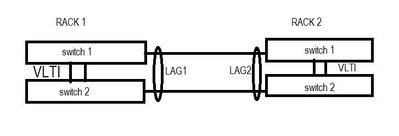

This is the diagram to better explain.

I need to create LAG 1 and LAG 2 using 1 port from each switch.

as for the switches it is OS10.

Please help me if possible with the exact procedure and commands in order to avoid missing fundamental steps.

Thank you

Hello,

Unfortunately we can't help you much more in network configuration, I suggest you purchase a configuration ticket through our sales support and you will be assisted in detail in your request by one of our experts.

Thanks
