cofiguring LACP on switch s5248f

I have confiugured my 4 interfaces on LACP and addes VLAN so that i can communicate between  my two servers but i have the error that tells that the line protocol is down .

the model is : 2 servers connected to the same  switch and each server has an aggregation with two ethernet cable (25G)

#show port-channel summary

Flags: D - Down I - member up but inactive P - member up and active
U - Up (port-channel) F - Fallback Activated IND - LACP Individual
--------------------------------------------------------------------------------
Group Port-Channel Type Protocol Member Ports
--------------------------------------------------------------------------------
11 port-channel11 (D) Eth DYNAMIC 1/1/10(I) 1/1/11(I)
12 port-channel12 (D) Eth DYNAMIC 1/1/12(I) 1/1/13(I)

the configuration is : [i have the two ports (11 and 10 linked to the first server and the 12 and 13 ports linked to the second server)]

swfrd(config)# interface port-channel 11
swfrd(conf-if-po-11)# show configuration
!
interface port-channel11
no shutdown
switchport mode trunk
switchport access vlan 1
switchport trunk allowed vlan 10

(config)# interface ethernet 1/1/11
swfrd(conf-if-eth1/1/11)# show configuration
!
interface ethernet1/1/11
no shutdown
channel-group 11 mode active
no switchport
flowcontrol receive off

and the same configuration for the other ports

Moderator

 •

2.8K Posts

December 20th, 2022 06:00

Hi, I believe Virtual Link Trunking can be helpful. Please check VLT

Dell EMC Networking OS10 How to set up Virtual Link Trunking (VLT) https://dell.to/3WvK3Cj

Configure VLT page 1622 https://dell.to/3Wtwfbw

Dell EMC Virtual Link Trunking Layer 2 Reference Architecture https://dell.to/3WyDsaa



Hope that helps!

December 20th, 2022 07:00

doesn't work

1 Rookie

 •

9 Posts

December 22nd, 2022 05:00

Have you enabled LACP on the servers? there are different modes of LAG, on windows servers there are Static, switch independent and LACP

December 27th, 2022 01:00

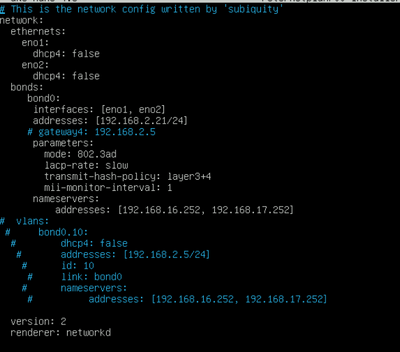

The configuration of the 2 servers ,.

Now i have the ping between the 2 servers and I can test iperf3 . I just want to understand why when I put the two interfaces into the active and passive mode, I see that the two cables pass the network, I thought that the passive mode in the 2 interface is just like a stand by in case the first cable is down it doesn't send any packets.

Is my configuration on the switch correct ? Am I missing any command?
