Manual and any help with Dell 80286 "System 200" (one of the First dell Desktops)
I have a immaculate Dell System 200 (Old legacy 80286 system). I have had for years and when tried it yesterday its stopped detecting the hard drive but will boot from a floppy. Then this morning when I turn it on I get a 4-2-3 bios beep codes and a blank screen. Ive checked all connections and reseated all ISA cards but still I get these beeps from the bios. I was looking in support to find a manual in the support section but even though I found it under legacy systems the manual is not there, just a email address link that don't work.
Can anyone help me diagnose what this could be and maybe help with a manual.
No Events found!
speedstep
9 Legend
•
47K Posts
1
November 3rd, 2017 04:00
http://downloads.dell.com/published/pages/oth-286-200.html
http://www.dell.com/support/home/us/en/19/product-support/product/oth-286-200/manuals
Currently, there is no online documentation, or drivers or support for your selected product.
This system is over 30 years old.
Ram is bad
cmos battery is bad
Motherboard is bad
End of Life End of support

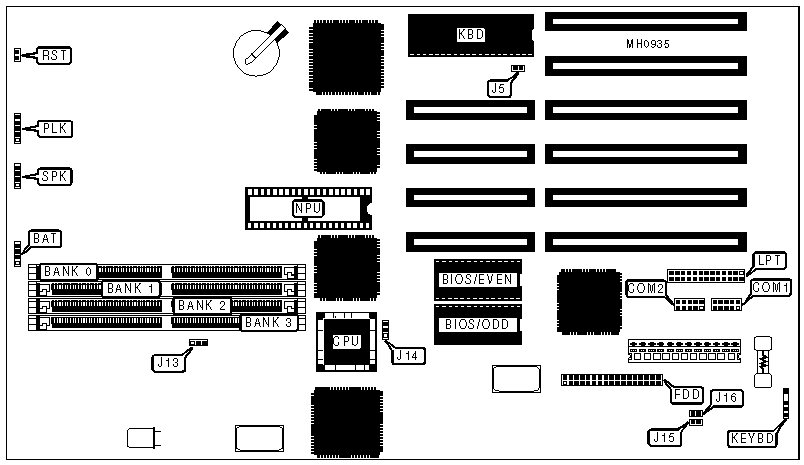

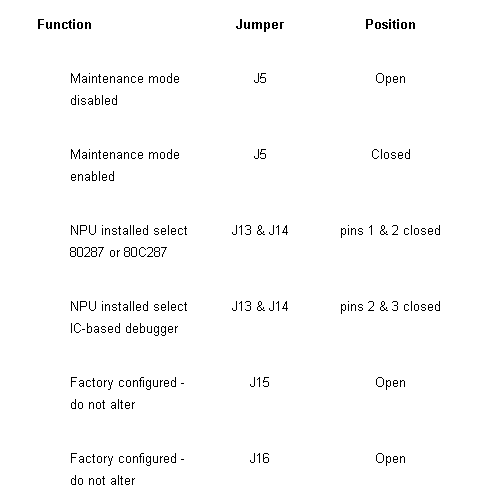

Jumpers
roadrash-uk
3 Posts
0
November 3rd, 2017 07:00
Thank you for the reply SpeedStep, I was hoping there was maybe some old service manual kicking around. I do repair vintage PC's and could solder in a new component if I was able to find the faulty item. When I first got turned it on years ago it blew a few tantalum capacitors but has been working great ever since until now. It has something to do with the keyboard interface & gate A20 I am told if only I knew a bit more. Be a real shame scrap it now. Thanks anyway..
Techgee
2 Intern
•
623 Posts
1
November 3rd, 2017 17:00
You could try Chat on Dell Support to see if they have paper manual(s) for it or any other diagnostic info. Likely a long shot, but...
Techgee
2 Intern
•
623 Posts
1
November 3rd, 2017 18:00
Or try contacting person on this post who seems to have a Dell System 200 (286 12mhz), unless that's you. ;)
FWIW, I believe the System 200 was reviewed in the March 1988 edition of Personal Computer World, according this site (search for "System 200").
