Area 51-R2 (late 2014), Max video card length?
Does it have the space for GTX Titan X (pascal). 10.5"? And the required Power connections are 2 x 8 pins. I haven't been very far into my computer as of yet. Do I have 2 x 8 pins? That's the 2 x Gen 3 bus @ 16 total pins right? Also does anyone know if the GTX Titan X is dual GPU?
No Events found!
DELL-Chris M
Community Manager
•
56.9K Posts
0
July 23rd, 2016 15:00

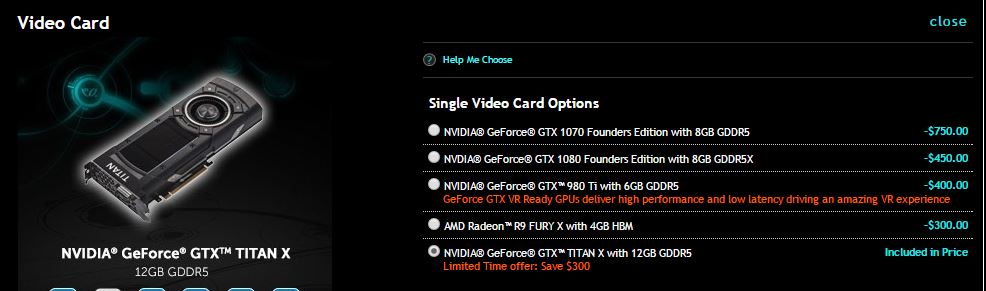

We sell the Area 51-R2 with the following 1XXH0 Nvidia GeForce Titan X =
12GB
Dual GPU
PCIe x16 Gen 3
DVI-I/DP1.2/DP1.2/DP1.2/HDMI2.0
6pin+8pin power
Height 4.376"
Length 10.50"
My Area 51-R2 has it.
Power supply 6pin --> 6pin to 8pin cable --> Titan X 8pin
Power supply 6pin --> 6pin to 6pin cable --> Titan X 6pin
