Will a Be quiet pure loop 2 120 mm cpu cooler work in a dell inspiron 3670

Will a Be quiet pure loop 2 120 mm cpu cooler work in a Dell Inspiron 3670. If not what coolers will work. Im looking to put a i9 9900 in it but don't want to even bother without a better cooler.

9 Legend

 •

8.1K Posts

December 4th, 2024 07:43

Not certain, but as long as manufacturer provides all needed brackets for LGA 1511 and fan cables, it should work.

You can review this upgrade video for anticipated processes with installation and a known upgradable cooler.

9 Legend

 •

14.6K Posts

December 4th, 2024 17:02

3670

Height 373.70 mm (14.71 in.)
Width 160 mm (6.30 in.)
Depth 294 mm (11.57 in.)

the oem board is mounted on fixed M3 studs of chassis floor, so a non-Dell cooler that does not use M3 backplate would not work (unless you use a plier to twist off those studs which I do not recommend)

https://www.youtube.com/watch?v=M8P1Tw4P-7s

playtime 12:40

you could use Dell premium tower cooler for Optiplex 7080 but it may be taller than the 3670 case width, which means in that case you can not close the side panel.

7080

Width

169.00 mm (6.65 in.)

you can look for a non-Dell tower air cooler that uses M3 backplate and low profile,  you do not use the new cooler backplate.  rather you just mount it on the Dell studs (M3).

(edited)

9 Legend

 •

14.6K Posts

December 4th, 2024 17:20

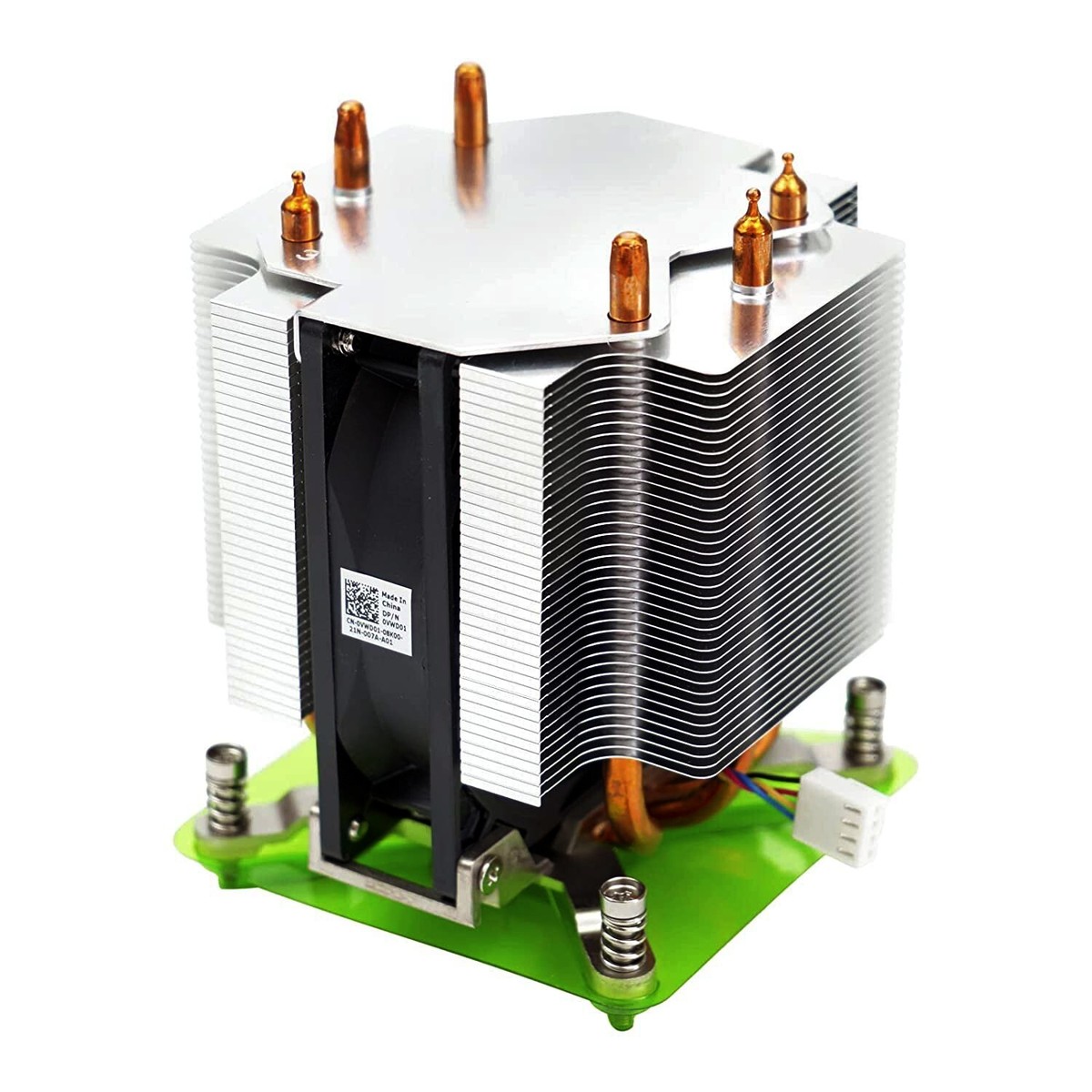

7080 tower cooler

9 Legend

 •

14.6K Posts

December 4th, 2024 17:36

if you plan to use a 120mm AIO liquid cooler, one that works with Dell M3 is Corsair H60.  user has validated it in XPS 8940.  it works with Dell M3 studs.  I am not sure how you would connect liquid pump power in 3670 though?  do you connect it to cpu fan header?  the pump may need more power/current than what a fan header can supply safely.  you still need a radiator fan header too.  it is probably easier to use tower air cooler.

(edited)

9 Legend

 •

8.1K Posts

December 5th, 2024 00:15

Not certain about Be Quiet Pure Loop cooler but I posted a YT link to Asetek 545LC 92mm AIO upgrade.

9 Legend

 •

14.6K Posts

December 5th, 2024 02:23

this may be similar to chino's YT

Inspiron G5 5000 user was able to upgrade to Asetek AIO

Asetek 645LT 92mm AIO

G5 5000 also has the M3 studs of chassis floor and no backplate fixed to backside of oem board, similar to 3030

https://www.dell.com/community/en/conversations/inspiron-desktops/liquid-cooled-g5-5000/647f9306f4ccf8a8de4fe6e0

(edited)
