Inspiron 5675 5676 socket and heatsink
Dell uses standard AM4 socket on oem mobo, which is great compared to R10
Three Dell oem heatsinks all AM4

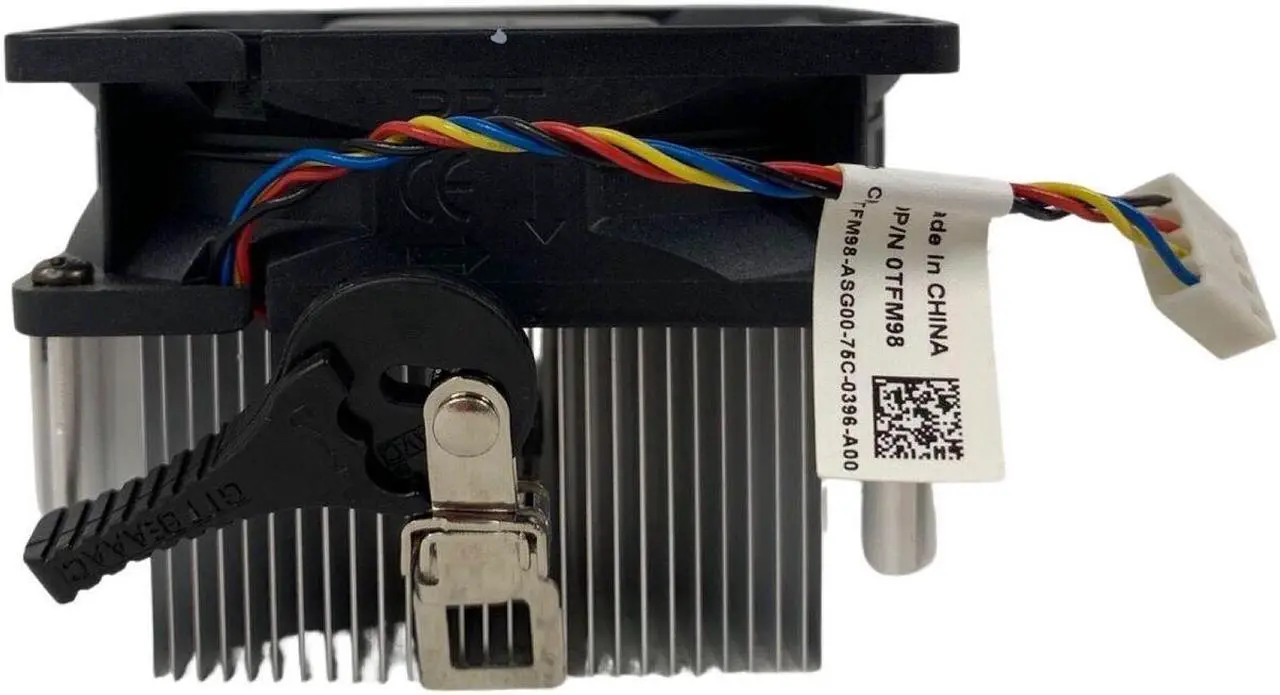

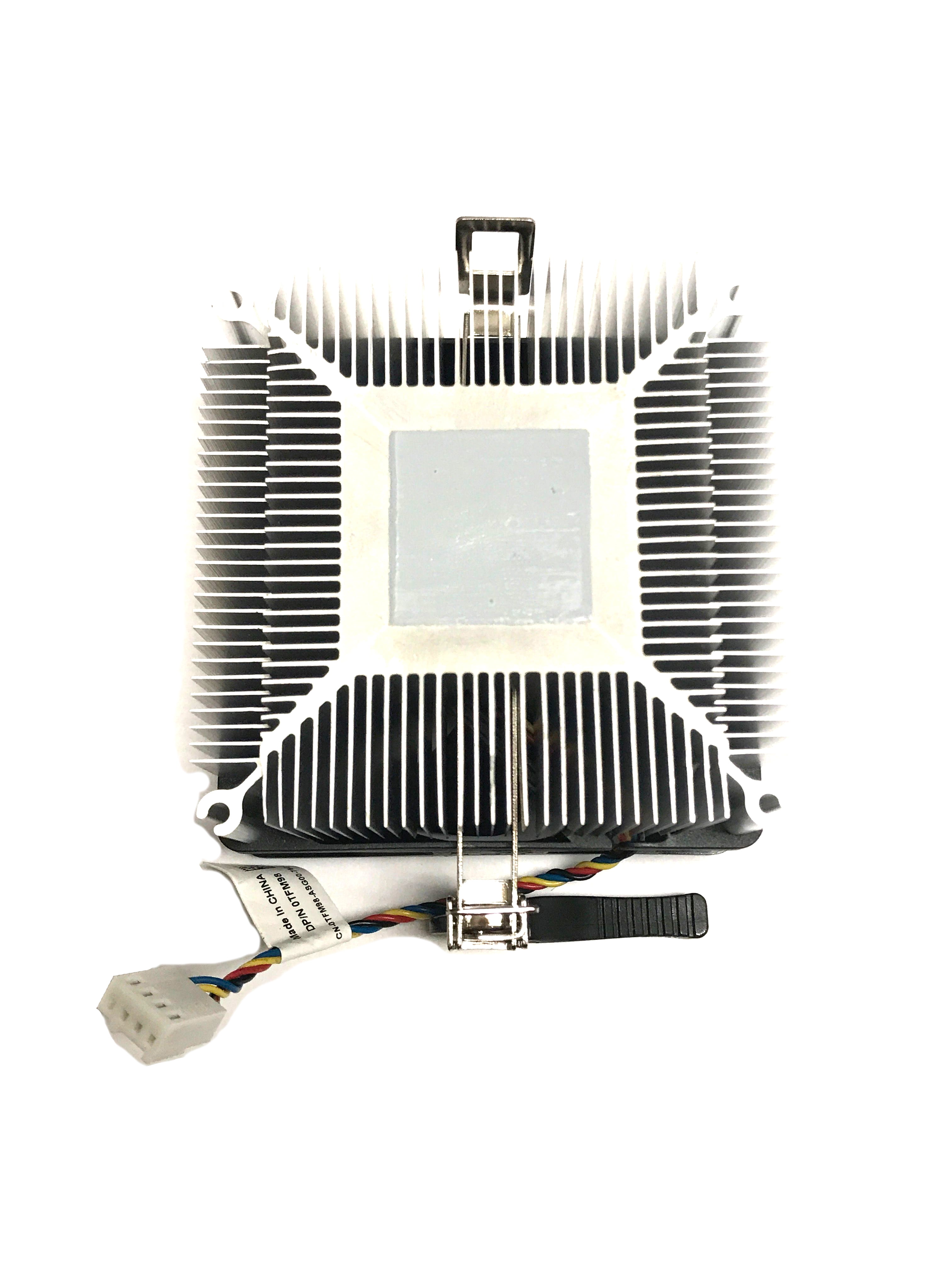

basic aluminum
| Fan, Thermal, Air, 65W, Central Processor Unit 460 Watt Power Supplywith Polar Blue LED Illumination |
Dell TFM98
|
performance copper
| FAN, THERMAL, AIR, 95W, CENTRAL PROCESSOR UNIT Thermal, Air, 95W, Central Processor Unit |
Dell 3WTV1
|

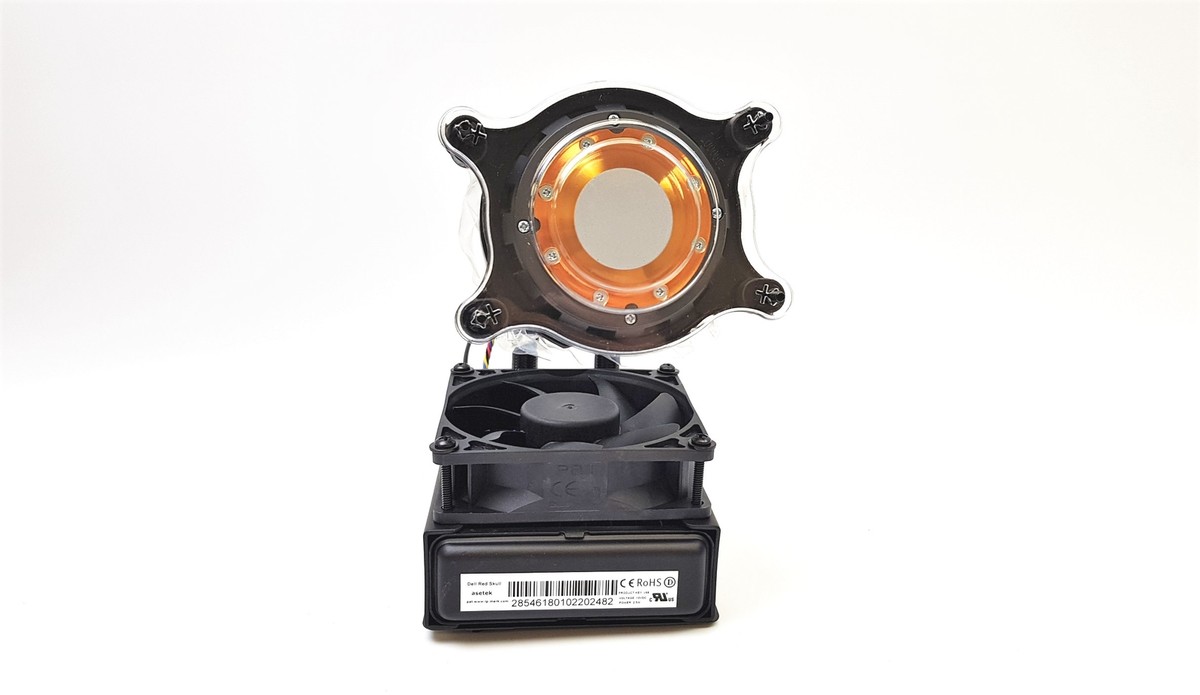

liquid cooler (Dell red skull Asetek)
| BRACKET, THERMAL, APPLICATION SUPPORT, LQD 460 Watt Power Supplywith High Performance Liquid Cooling & Polar Blue LED Illumination |
Dell FT4VH
|
No Events found!
redxps630
9 Legend
•
14.6K Posts
0
November 23rd, 2024 02:39
user who have non-Dell AMD AM4 board can use these Dell oem coolers too. standard AMD air cooler is clip on bracket. no heatsink mounting screws. quite different from Intel. liquid cooler uses screws.
The AM4 socket specifies the 4 holes for fastening the heatsink to the motherboard to be placed in the corners of a rectangle with a lateral length of 54×90 mm.
Previous sockets have 48×96 mm: The 4 holes for fastening the heatsink to the motherboard are placed in a rectangle with lateral lengths of 48 mm and 96 mm for AMD's sockets Socket AM2, Socket AM2+, Socket AM3, Socket AM3+
(edited)
redxps630
9 Legend
•
14.6K Posts
0
November 23rd, 2024 02:45
Dell trivia: which Dell desktop are AMD?
Inspiron 5675
5676
Aurora R10
R14
Optiplex 5055
XPS 625
redxps630
9 Legend
•
14.6K Posts
0
November 23rd, 2024 02:46

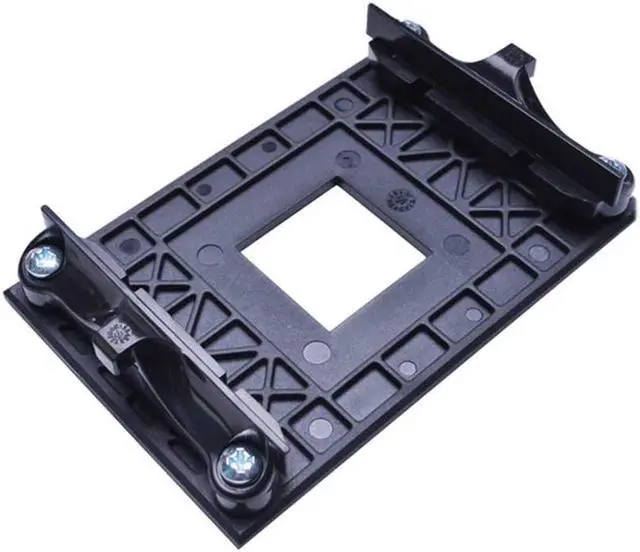

AM4 bracket
bradthetechnut
7 Technologist
•
9.1K Posts
0
November 25th, 2024 03:57
@redxps630 All of them that don't use Intel. Seriously, I'm betting all of them.
In response to trivia question.
redxps630
9 Legend
•
14.6K Posts
0
November 25th, 2024 04:14
That was my short list of Dell AMD. I think 1-2 were missed.
bradthetechnut
7 Technologist
•
9.1K Posts
0
November 25th, 2024 04:19
Might be 1 or 2 more Optiplex's that use AMD.
bradthetechnut
7 Technologist
•
9.1K Posts
0
November 25th, 2024 04:26
Dell AMD Desktops
Aurora R15
(edited)
redxps630
9 Legend
•
14.6K Posts
0
November 25th, 2024 14:22
R15 is Intel.
but there is a R15 AMD which ought to be named Ryzen Edition R15.
which Dell AMD has AM4 socket but Intel heatsink ?
R10
R14
Opti 5055
(edited)
redxps630
9 Legend
•
14.6K Posts
0
November 25th, 2024 14:26
List of Aurora
Alienware Aurora
bradthetechnut
7 Technologist
•
9.1K Posts
0
November 26th, 2024 03:18
Optiplex 740 was the other one I was trying to think of. Probably more Dell's with AMD than we'll ever know.
