help with a Dimension 8400 34 pin front panel header
i have a Dell 0U7077 motherboard and i cant seem to jump it can someone help me
No Events found!
Unsolved
1 Rookie
•
1 Message
0
107
October 22nd, 2024 21:43
i have a Dell 0U7077 motherboard and i cant seem to jump it can someone help me
Top
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 02:45
U7077 is a very old dimension 8400 mobo
(edited)
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 04:44
8400 FIO board
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 04:47
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 04:50
(edited)
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 05:20
34 pin header:
this is a possible power switch pinout
Pin 20 is power hot and pin 19 is a ground (as in Optiplex 170L)
(edited)
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 06:20
In Dimension 8400

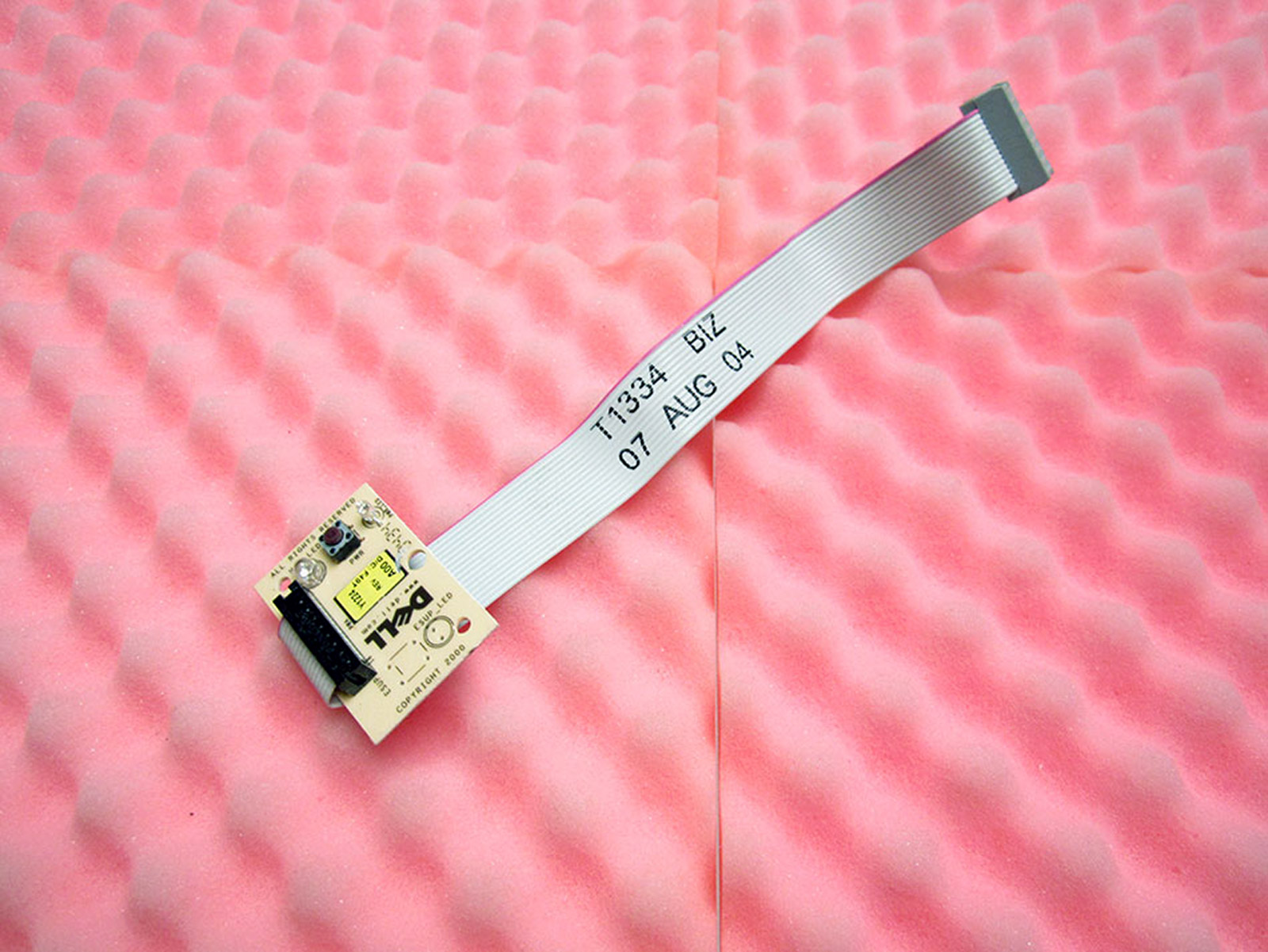

the power button board is
this is connected to the front panel board CTRL PNL 15 pin header via a 16 pin cable (the cable is included in Y1224)
the front panel board connects to motherboard via a 34 pin cable
(edited)
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 06:36
a 10 pin (6 wire) audio cable goes from front panel board to add in sound card
(edited)
redxps630
9 Legend
•
14.6K Posts
0
October 23rd, 2024 21:46
Dell FIO (08UMD) Ctrl Pnl (control panel) 16 pinout:
The control panel is a 16-pin layout with one pin missing in the 1 position.
Power switch (pin 2 hot, pin 3 gnd)
(edited)
