what is meant by meta LUN in clarrion ?

Creating Metalun is the way of expanding lun size in clariion/vnx.

You find many search results for MetaLuns in community similar to Re: MetaLUN . Also you will find many knowledgebase articles in support.emc.com

hi,

1. meta LUN just let multiple LUN together,can be used just one biger LUN.

2.you can create meta LUN use unisphere or navisphere manager or navicli .

3. hope get better performance or greater single LUN.

4. striped  can be high performance but should  completed befor write data..,concatenation can be  get biger LUN.

detail please follow Madhusudan's  links.

Hi,

You may refer Navisphere Help for more detailed information and steps to create MetaLUN.

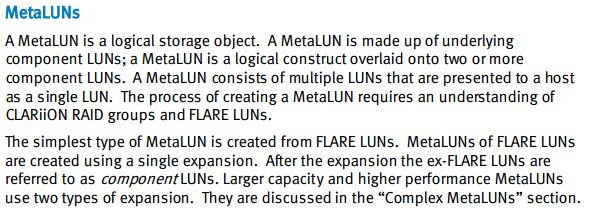

Also refer CLARiiON MetaLUN Whitepaper for more information.

http://www.emc.com/collateral/hardware/white-papers/h1024-clariion-metaluns-cncpt-wp-ldv.pdf

Thanks

Madhusudan

Hi Dinesh,

You may also refer to below mention document (Best Practices for creating MetaLUNs)

https://community.emc.com/docs/DOC-12812

Regards,

Suman Pinnamaneni

1.what is mean by meta LUN

2.How do we create with EMC navisphere

Refer Page 166 onwards of EMC Navisphere Manager ADMINISTRATOR’S GUIDE for Step-by-step instructions. (Navisphere Manager Administrator's Guide)

3.Why we are going for metalun

If a storage administrator requires additional space on the existing LUN, typically they go for LUN Expasion.

4. striped or concatenation  difference

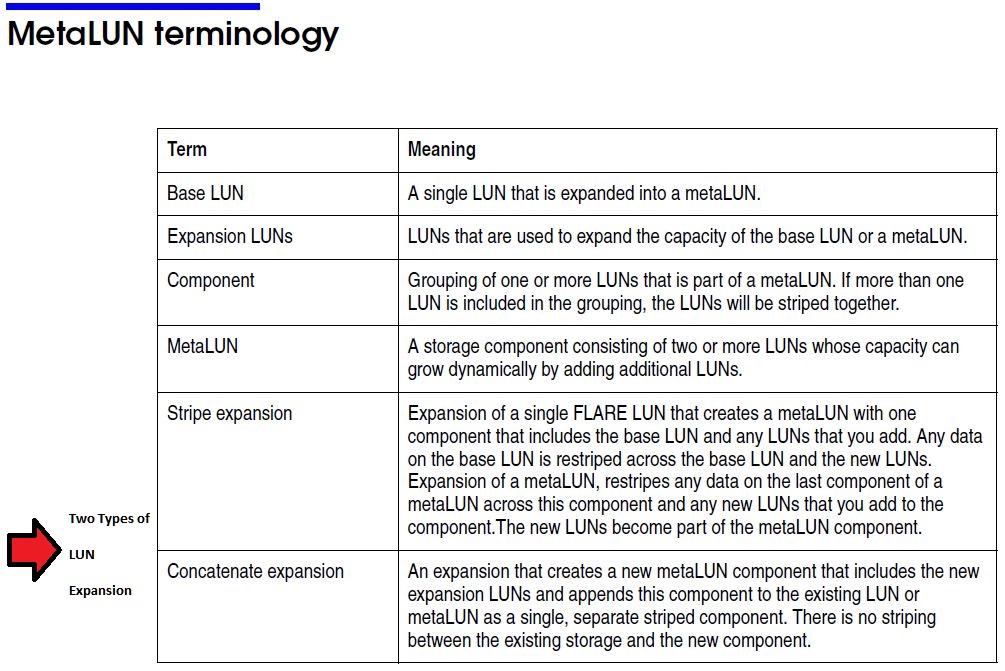

- Difference is mentioned in the Image 2. However, I would also suggest to read EMC CLARiiON Best Practices for Performance and Availability for more clarity from performance perspective for metaLUNs.

Was your question answered correctly? If so, please remember to mark your question Answered when you get the correct answer and award points to the person providing the answer. This helps others searching for a similar issue.

glen

Thank you

can you share you skye ID

dineshjaisanakar wrote: can you share you skye ID

Thank you, I take this as a compliment. However, If this is about EMC Query or Knowledge Sharing I would love to help out here on ECN but if you wish to socialize my twitter handle is @ankitmehta

Thanks!

See the following document for Best Practices for MetaLUNs:

White Paper EMC CLARiiON MetaLUNs - A Detailed Review

glen
