Server initiator problem
SAN shows an error "Server initiator no longer has an active connection to the storage system." thats ok because that server does not have the connection anymore. But how can I delete the error message from showing? I can't find any way to unregister the connection. Connection has been deleted from the FC switches (zoning configuration).
I'm using EMC Unisphere v1.0.52.1.0073.
No Events found!
Anonymous User
7 Posts
0
February 25th, 2014 22:00
And here's the connectivity status of the server in question.
(can't attach the picture anymore)
Well but there is no such item in Hosts.
cincystorage
2 Intern
•
467 Posts
0
February 25th, 2014 22:00
you should be able to find the wwn under "Hosts" -> "Initiators" at the top and deregister it.
dynamox
9 Legend
•
20.4K Posts
0
February 26th, 2014 03:00
so you don't see that host in Connectivity Status ?
Anonymous User
7 Posts
0
February 26th, 2014 04:00
I mean that there is no "Initiators" in "Hosts".
I can see the connectifity status of that server. All paths are registered but there is no option to unregister them.
Anonymous User
7 Posts
0
February 26th, 2014 04:00
Ok. It didn't change anything. Page reloaded after I logged in engineering mode but no any additional options came available.
dynamox
9 Legend
•
20.4K Posts
0
February 26th, 2014 04:00
look at what i put in parenthesis after ...
dynamox
9 Legend
•
20.4K Posts
0
February 26th, 2014 04:00
did you try to enter engineering mode first ? (CTRL+SHIFT+F12 ...messner)
dynamox
9 Legend
•
20.4K Posts
0
February 26th, 2014 04:00
i want to make sure we are talking about the same spot in Navisphere. Did you right click on storage array and selected "Connectivity Status"
Anonymous User
7 Posts
0
February 26th, 2014 04:00
It asks a password. I don't know any engineering passwords.
Anonymous User
7 Posts
0
February 26th, 2014 05:00
Yes I right clicked over the server in Hosts list and selected the "Connectivity Status".
cincystorage
2 Intern
•
467 Posts
0
February 26th, 2014 08:00
You can always go to the CLI
navissecli port -removeHBA
Anonymous User
7 Posts
0
February 27th, 2014 01:00
CLI is beyond my knowledge.
gautam_sunil
7 Posts
0
February 27th, 2014 01:00
Hi Sani
Have you removed the host from Storage Group ?
If yes please try to reboot the Management station might be console is not updating the information .
You can refer to the primus - emc254967
kelleg
4.5K Posts
0
February 27th, 2014 14:00
Go to the Hosts, then on the right side, click on Initiators. Find the host and click the + button to see the initiators.

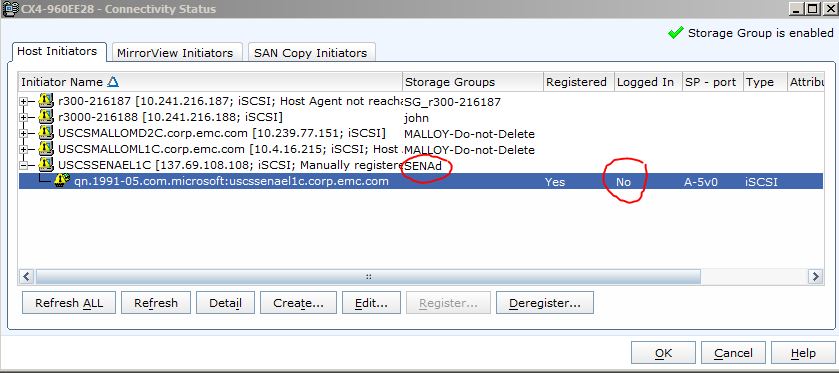

To de-register an initiator, the initiator must be logged off. In the screen below, you would select the initiator, then click on de-register. It would also be best to ensure that the initiator is not part of a Storage Group. In your screen capture, the Storage Group is listed as ~management, which means that the initiators are not connected to a Storage Group. Click the Refresh All button when done to see if the changes were applied.
glen
a4i-system
1 Message
0
January 16th, 2015 09:00
Hello,
I have the same message on my EMC Unisphere, but it is about a SPARE server ...
that is "offline" for the moment, but could be start-up manually if the primary server crash.
Should this "Warnings" could be "deleted" (aknowledged) by a special way ?
see what I see in my EMC Unisphere interface :

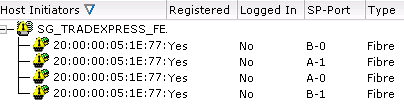

in the Hosts-Initiators,
(=> view on both primary and secondary place ... I don't understand what it means)
and, about this SPARE Server named "FExxxxxx" :

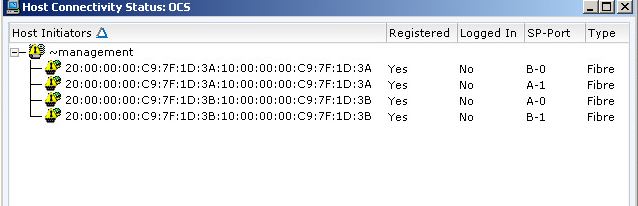

an in the Host Connectivity Status :
than for your return to a EMC novice who want to understand everythink he see ;-)
