Unsolved
This post is more than 5 years old
2 Intern
•
614 Posts
0
1053
November 30th, 2013 14:00
help!! After evicting bad windows 2003 node and zoning vnx luns, only new luns can be seen
Hello,
Never have seen this before. I am migrating luns from a clarion. The host is also zoned to the ns. I checked and there were two different ips listed for the same host on each array, however, the host connectivity status is green for both ips on each array, same hbas.

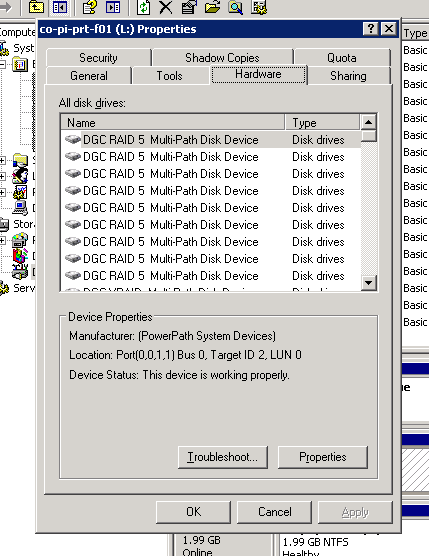

I asked the windows admin to confirm the ip of the host and zoned it the vnx accordingly. I registered the hbas, created the storage group and luns and rescanned the windows host. I could see all drives in disk management, however, powerpath is only showing the new drives in the powerpath management console. I issue the powermt command and see the same thing. We did not reboot the good node after we evicted the bad node, however, things are working fine on the server I am attempting to migrate. I am afraid to re boot.
If anyone has come across this and has any advice, that would be appreciated.
Thanks!
Benita
admingirl
2 Intern
•
614 Posts
0
November 30th, 2013 15:00
Yes, the zones to the old array are still valid, the hbas show green on the old arrays Their definition in powerpath are gone. I don't see the old arrays under the storage arrays management tab.
dynamox
9 Legend
•
20.4K Posts
1
November 30th, 2013 15:00
are you saying the host is also connected to CX and NS but PowerPath is only display LUN information from VNX ?
dynamox
9 Legend
•
20.4K Posts
0
November 30th, 2013 16:00
i have not seen this before either but it's windows so i would not be surprised it lost its mind. So it looks good in Disk Administrator ..how about if you run inq for windows ?
admingirl
2 Intern
•
614 Posts
0
November 30th, 2013 16:00
How can power path lose array definitions?
admingirl
2 Intern
•
614 Posts
0
November 30th, 2013 18:00
Thank you Dynamox, I will try that now.
Benita
admingirl
2 Intern
•
614 Posts
0
November 30th, 2013 18:00
dynamox
9 Legend
•
20.4K Posts
1
November 30th, 2013 18:00
are they all DGC or you some VRAID ?
admingirl
2 Intern
•
614 Posts
0
November 30th, 2013 19:00
Some are VRAID DGC as well
dynamox
9 Legend
•
20.4K Posts
0
December 1st, 2013 06:00
appears the system can see them ok, and if you are not seeing 4 (or however many paths ) times as many LUNs as you expect to see in Disk Administrator ..that means PowerPath is still managing them. Sounds like PowerPath reporting utility lost its marbles, i would schedule a maintenance window and bounce that box. This is the one you would be migrating using PPME ?
admingirl
2 Intern
•
614 Posts
0
December 1st, 2013 06:00
Thank you Dynamox! I think we are going to reboot this afternoon. I migrated a windows 2003 cluster last week using PPME (including quorum), and it was fine. This one was a non healthy cluster and instead of fixing it, the windows team decided to evict the unhealthy node and have it run as a one node cluster. Seems to have created issues we did not anticipate!
So tired, up all night and hopefully can regroup to get this fixed today.
Thanks again!
Benita
dynamox
9 Legend
•
20.4K Posts
0
December 1st, 2013 06:00
ping me on gmail chat (it will also make sound on my phone) if you run into issues.
dynamox
9 Legend
•
20.4K Posts
0
December 1st, 2013 06:00
i hear you, get some rest, get some coffee and migrate that sucker
. Worst case using SANCopy ?
admingirl
2 Intern
•
614 Posts
0
December 1st, 2013 11:00
Thanks so much Dynamox, I really appreciate it. I am emerging from a long nap, a pot of coffee and now I am ready for round two!
