getunusedluns Works For RG LUN's. How About For Pool LUN's
So, I can run naviseccli -h getunusedluns and get a list of raid group LUN's that are not used by the system in any way. Is there is similar command to display unused LUN's that are in a storage pool?
We are running 04.30.000.5.524 Flare code on the Clariion.
Thank you in advance!
Dave
No Events found!
christopher_ime
2K Posts
0
July 1st, 2012 19:00
What I am finding is that "Features: N/A" does not imply it is in a storage group or not. The only value is that it verifies if a lun is in use by an array feature such as Snapview if Features: != N/A.
For instance, the pseudo-code to gather the Unused pool and traditional LUNS (not in a storage group or used by array features) off the top of my head may look like the following:
1) getunusedluns
This returns the results for traditional LUN's not in a storage group or used by array features
2) lun -list -featureData && Feature: != N/A
This implies that it is in use by an array feature such as Snapview (or in other words, Feature: = Snapview, Clone, etc)
3) Identify just the pool luns in a storage group
Remember the traditional LUNs are accounted for in #1
4) Remove the results of #2 and #3 from the TOTAL pool LUN list and add results of #1
Thoughts?
Anonymous User
457 Posts
0
June 29th, 2012 10:00
Hi Dave,
How are you doing today..?
If I am not wrong there is no commend to get the list of unused LUNs for Storage Pool.., However, Let me double confirm ……
Regards,
Suman Pinnamaneni
dynamox
9 Legend
•
20.4K Posts
0
June 29th, 2012 15:00
does it need to be a scripted process ? Because you can see these LUNs in Unisphere and can export to csv if need to.
dynamox
9 Legend
•
20.4K Posts
0
June 29th, 2012 19:00

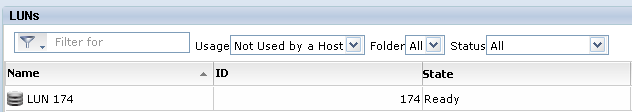

in Unisphere you can sort by LUNs that are not presented to hosts
sunking1
26 Posts
0
June 29th, 2012 19:00
It does not need to be scripted but it can be, I'm not picky.
I am positive that I have a metric ton of unused LUN's in our storage pools but I can't find them easily like I could with the Raid Group LUN's and the getunusedluns flag.
I can't believe that EMC wouldn't provide this ability.
sunking1
26 Posts
0
June 30th, 2012 10:00
Hey Dynamox,
Yep, that will show a LUN that not assigned to a host but it doesn't take things like MirrorView target, etc... into consideration. This does not truly mean that a LUN is unused, just that it isn't presented to a host.
Other thoughts?
Thanks!
Dave
dynamox
9 Legend
•
20.4K Posts
0
July 1st, 2012 06:00
i don't see any one command that would do that, even if you just list all LUNs, there are no specific strings to look for ..something that would indicate for example that this LUNs is a source or target of SnapView operations. I see a little scripting project in your future
AnkitMehta
1.4K Posts
0
July 1st, 2012 11:00
I agree with dynamox. There's no such command to display unused LUN's that are in a storage pool as such.
At least, none that I am aware of. I did research on your query on Friday but I did not find anything in Latest Navisphere CLI Reference. For now, as scripting is the way!
christopher_ime
2K Posts
0
July 1st, 2012 16:00
While everyone agrees there is no direct equivalent for getunusedluns for pool luns, you can at least use the -featureData option to identify the pool luns in use by Snapview, etc.
For instance, running the following command:
naviseccli -h lun -list -featureData
might provide output such as:
Features:
Snapview
dynamox
9 Legend
•
20.4K Posts
0
July 1st, 2012 19:00
My thought ..we need to submit an RFE to navicli developers
christopher_ime
2K Posts
0
July 1st, 2012 20:00
Hehe, true.
For anyone that stumbles on this thread, I figured I'd provide the link that people can use to submit a feature request. It is available on Powerlink via the following breadcrumb trail:
Home > Support > Request Support > Request a Product Enhancement
Then click on "Getting started".
sunking1
26 Posts
0
July 2nd, 2012 05:00
Thank you all for the feedback to my question. It is certainly appreciated. I will see what I can do to open up an RFE to get this added.
Kind regards,
Dave
