FlexPort I/0 best practics
Hi our customer has purchased a new CLARiiON CX4-480 array and would like to know how to optimize back-end performance using the FlexPort I/0 modules. Which EMC best practice optimizes back-end performance?
No Events found!
Roger_Wu
4 Operator
•
4K Posts
0
June 4th, 2013 01:00

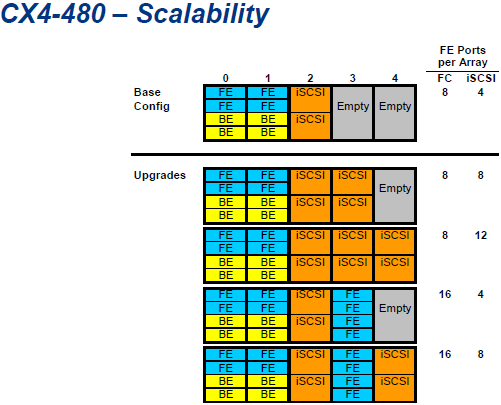

Yes, and you can refer to the design options below for UltraFlex I/O modules in a CX4-480 array.
dynamox
9 Legend
•
20.4K Posts
1
June 3rd, 2013 04:00
i am not sure if there is anything documented specifically for ultraflex I/O modules but as far as host connectivity is concerned you want to connect each HBA to at least SPA and SPB. Ultraflex ports just give you more front-end connectivity, i don't think they can be used as BE ports.
ALEX_SERYOGIN
71 Posts
1
June 3rd, 2013 23:00
that is, I can use up to two BE and two FE ports per FC I/0 module?
