Clariion Report Generation for Lun's associated to a particular host

I need help in generating a report on a Clariion storage Array, where I need to generate a report for Available Luns that are associated to servers with WWN’s.

I could generate a report for Lun Names, with Lun ID’s.

I could generate a report for Server name Details seperately using NAVISPHERE.

But could not find the way to patch up the both. Need your Advise.

Thank you

9 Legend

 •

20.4K Posts

December 9th, 2013 14:00

if there is no "cooked" report you can always script something using naviseccli

4 Operator

 •

4K Posts

December 9th, 2013 18:00

If you are an EMC partner, you can use TRiiAGE tool to generate the report. The tool can be downloaded on EMC Service Partner Web.

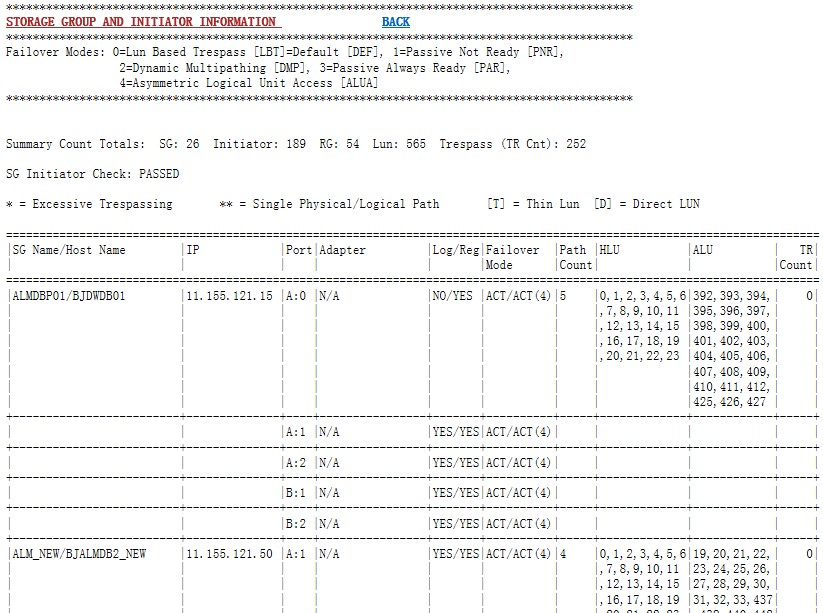

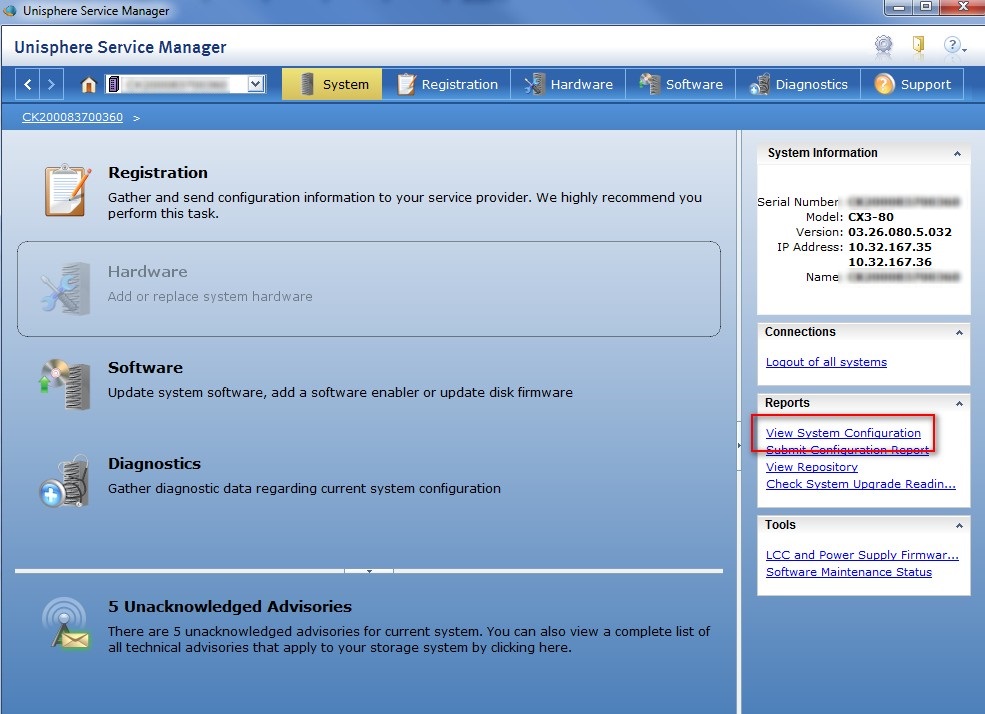

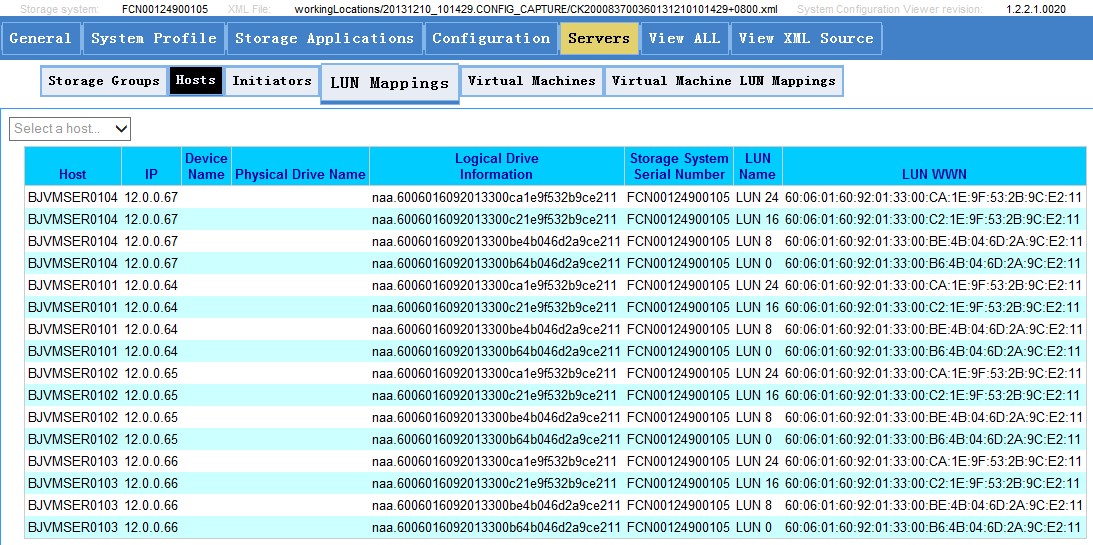

If you are a customer, you can use USM (Unisphere Service Manager) to generate the "hosts" report. You can search and download USM on support.emc.com (in Support Tools category). Please also refer to the KB "How to use Unisphere Service Manager (USM) to generate new configuration reports and view existing reports": https://support.emc.com/kb/15660 and "How do I use the Unisphere Service Manager (USM) to view SPCollect information?": https://support.emc.com/kb/14163 for the details.



Please mark my answer as correct/helpful answer if it helps. Thanks.

1.4K Posts

December 10th, 2013 00:00

Was your question answered correctly? If so, please remember to mark your question Answered when you get the correct answer and award points to the person providing the answer. This helps others searching for a similar issue.


Ankit

4 Posts

December 10th, 2013 06:00

Well.. Not Exactly, but I can try the above mentioned.

Is there any CLI commands I can use to get the Lun info with Server name details...??

4 Posts

December 10th, 2013 06:00

Yes, I can get the lun info associated to a storage group. But How do I for a particular server??

Am new to clariion. So Sorry if am missing something.

9 Legend

 •

20.4K Posts

December 10th, 2013 06:00

you can list LUNs that belong to a particular storage group. That should give you enough to script the rest. Have you downloaded  VNX Command line reference for Block ?

9 Legend

 •

20.4K Posts

December 10th, 2013 07:00

you will need to figure out (script) what servers are member(s) of specific storage group.
