December 2nd, 2013 04:00

Avamar RAIN (Multinode) Degraded (not Green Color)

Hi,

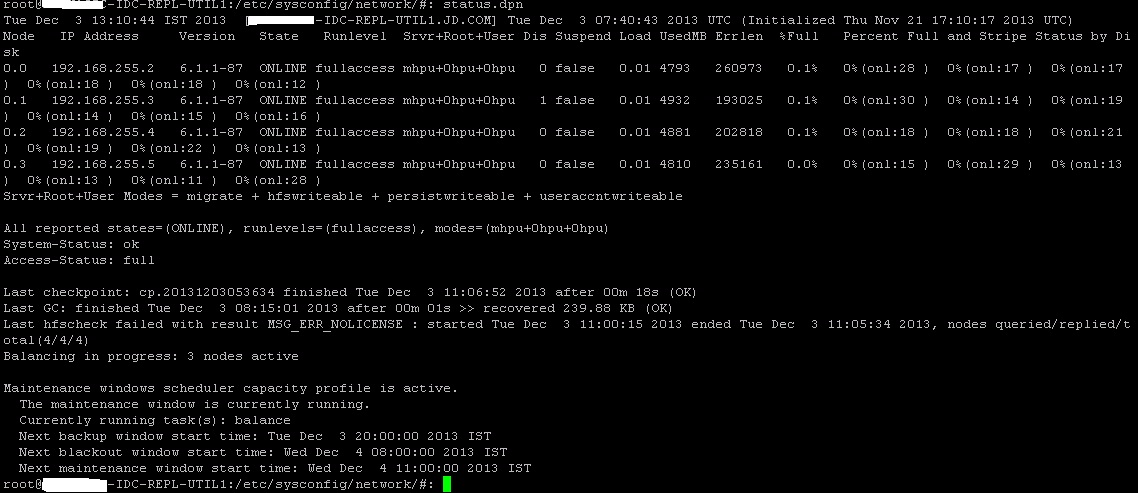

Recently In installed Avamar Multi node Avamar Server and when I check Avamar Administrator Console Server --> Server Monitor, all the nodes color was gray (not Green). Please find the screenshot below.


However the dpnctl status was all success


Please suggest.

Thanks & Regards,

Raghuram Bhat

Community Manager

 •

8.7K Posts

December 3rd, 2013 00:00

Hey,

Looks the nodes status is normal. But you can see these message from  the output of status.dpn.

"Last hfscheck failed with results MSG_ERR_NOLICENSE".........

The point is no license.

So, I guess you did not input a normal license. That is why the nodes are grey on Avamar GUI.

If you don't have normal license, please contact local EMC sales.

If you have normal license, but you don't know how to generate the license and input to Avamar server, please contact EMC for assistance.

Hope this helps.

82 Posts

December 2nd, 2013 04:00

Try checking the output of status.dpn

12 Posts

December 2nd, 2013 14:00

Check MCS  probably it could not communicate with Data Domain



Community Manager

 •

8.7K Posts

December 2nd, 2013 17:00

Hey,

Please try to restart MCS service.

#dpnctl stop mcs

#dpnctl start mcs

If the problem still appeared, please post the output of status.dpn

December 2nd, 2013 23:00

Hi,

as requested, I am attaching the status.dpn output. Please suggest.


December 3rd, 2013 01:00

Hi All,

Thank you for the suggestions and answers.

It was a error during license apply and now it is resolved.

Thank you once again

Regards,

Raghuram Bhat

82 Posts

December 3rd, 2013 01:00

Hi

Please check the output of avmaint license --ava

You will get further details on the same.

Community Manager

 •

8.7K Posts

December 3rd, 2013 17:00

Hey,

I'm glad to hear that the problem has been resolved.
