Aurora R10, how to install a water cooling unit?
How do I install a water cooling unit properly
I bought a Corsair
iCUE H60x RGB Elite 120mm Liquid CPU Cooling System
And I want to know what cords I use and don’t and how to set it up properly without wrecking anything love this thing so far
No Events found!
redxps630
9 Legend
•
14.4K Posts
0
December 15th, 2024 17:41
R10 despite being AMD AM4 socket for cpu uses Dell LGA1151 square hole spacing for heatsink mounting and has Dell M3 back plate. Corsair H60 is known to work with Dell back plate without need to remove Dell board to install cooler specific back plate, which fits what OP wants: a direct drop in and minimal havoc.
VRM heatsink is helpful if you overclock the Ryzen cpu in R10 which is unlocked. but if OP does not plan to overclock cpu, it is not mandatory to install VRM heatsink. they do not cost much and are not difficult to install if you get the correct part, it is just an extra step OP can consider skipping again if minimal work is desired.
Vanadiel
6 Professor
•
6.9K Posts
0
December 15th, 2024 15:39
If this is an air cooled unit, you will need the VRM heat sinks and only certain retail liquid coolers are known to support the R10.
Most retail coolers do not support the R10.
(edited)
redxps630
9 Legend
•
14.4K Posts
0
December 15th, 2024 17:47
backside pic of R10 showing fixed Dell M3 back plate
here is user guide to install H60 in XPS 8930 which uses same M3 Dell backplate as R10. OP H60x RGB uses same mounting hardware as older H60
https://www.dell.com/community/en/conversations/xps-desktops/xps-8930-gpu-and-cpu-liquid-cooler-psu-case-swap-upgrade/647f7beef4ccf8a8dea397f0
ProfessorW00d
4 Operator
•
2.3K Posts
0
December 15th, 2024 17:48
I think you can get the Corsair H60x to work on the R10. The issue is that the R10 has an AMD processor, with Intel mounting spacing. So I believe it would work with the Intel mounting bracket and the AMD standoffs. You do not need to install a motherboard backplate. Make sure you download the installation instructions from the Corsair web site, and adjust as needed.
redxps630
9 Legend
•
14.4K Posts
0
December 15th, 2024 17:48
Using the 4 double sided pins, put the lower pins into the R10 heatsink mounting holes. No modifications needed, the unit is set up for the Dell motherboard LGA1151 CPU socket.
(edited)
ProfessorW00d
4 Operator
•
2.3K Posts
0
December 15th, 2024 17:54
@redxps630 The H60x will come with 4 sets of standoffs (double sided pins) . . . any idea if AMD or Intel should be used?
Korie_420
1 Rookie
•
37 Posts
0
December 15th, 2024 18:06
I do have the heat sinks
ProfessorW00d
4 Operator
•
2.3K Posts
0
December 15th, 2024 18:14
@Korie_420 Connect pump tach cable to the CPU_FAN header on your motherboard.
redxps630
9 Legend
•
14.4K Posts
1
December 15th, 2024 18:32
use Intel standoff. R10 heatsink is all Intel although socket is AM4.
refer to this pic
Vanadiel
6 Professor
•
6.9K Posts
0
December 15th, 2024 20:53
@redxps630 Always wondered, how does that affect the location of the cold plate if you use Intel standoffs on an AM4 platform?
redxps630
9 Legend
•
14.4K Posts
0
December 15th, 2024 21:07
AM4 and Intel LGA 1151 Z height are slightly different. Dell is not the only brand that does this. HP Omen Ryzen board has been using Intel heatsink too.

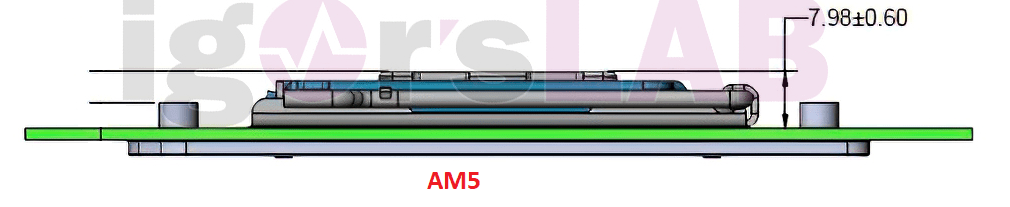

Height from the top of the motherboard to top of IHS vary from socket to socket :
use LGA 1151 cooler on AM4 socket is okay based on data above. thermal contact is fine.
(edited)
Vanadiel
6 Professor
•
6.9K Posts
0
December 15th, 2024 21:36
I was more wondering about the horizontal placement of the cold plate?
redxps630
9 Legend
•
14.4K Posts
0
December 15th, 2024 22:24
Intel i7-9700
package dimensions 37.5 x 37.5 mm
Ryzen 3600
IHS margin: 37.44 x 37.44 mm
